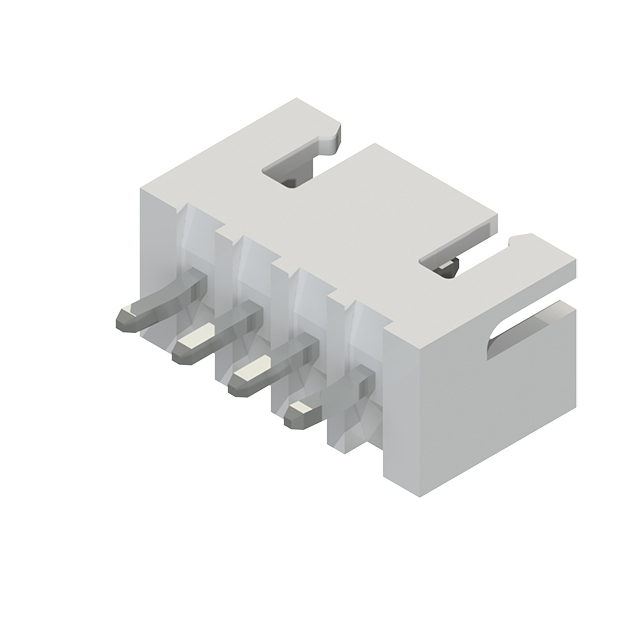

14K-504-412-AA1

14K-504-412-AA1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is 14K SERIES (.098"(2.50MM) CONTAC. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 14K-504-412-AA1

• Description：14K SERIES (.098"(2.50MM) CONTAC
• Series：14K
• Mfr：EDAC Inc.
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.098" (2.50mm)
• Number of Positions：4
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Kinked Pin, Solder
• Fastening Type：Detent Lock
• Contact Length - Mating：-
• Contact Length - Post：0.134" (3.40mm)
• Overall Contact Length：-
• Insulation Height：0.283" (7.19mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyamide (PA66), Nylon 6/6
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Natural
• Current Rating (Amps)：3A
• Voltage Rating：250VAC/DC
