Product Detailed Parameters
- Description：Interconnect Misc
- Series：*
- Mfr：Phoenix Contact
- Package：Bulk
Download product information
Overview

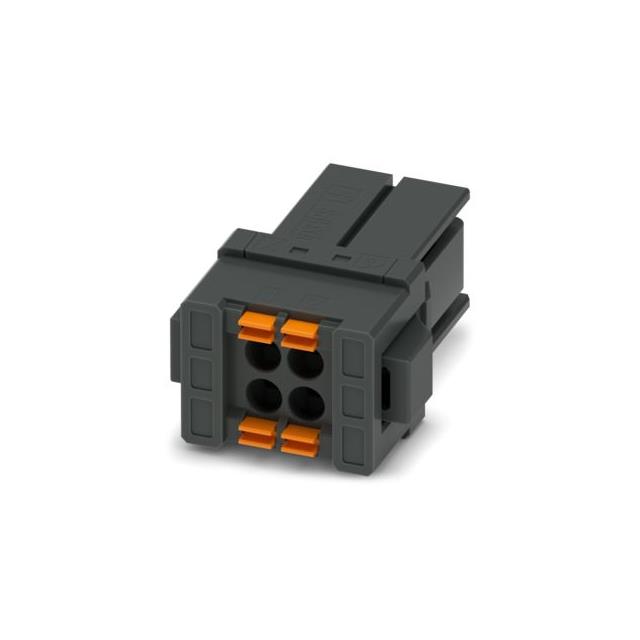

Phoenix Contact part number 1500430 is a PCB connector from the Connexis series, specifically model DD31PS 1,5/ 4-3,81-X. It features a 3.81 mm pitch and accommodates four positions with female sockets. The rated voltage is 160 V (III/2) with a surge voltage of 2.5 kV. Rated current is 8 A for a nominal cross-section of 1.5 mm². Operating temperature ranges from -40°C to higher limits. Housing is black PBT. Contact plating is tin. Wire gauge compatibility spans 24 AWG to 16 AWG.
Feature Summary
- Utilizes time-saving push-in connection technology that requires no tools.
- Features color-coded intuitive operation for simplified assembly.
- Designed as a wire-to-board connector with free-hanging in-line orientation.
Applications
- Industrial control panel wiring
- Automation system signal distribution
- Electrical cabinet interconnections
Procurement Notes
Verify the exact suffix matches 'DD31PS 1,5/ 4-3,81-X' to ensure correct pin count and pitch. Confirm RoHS compliance status if required by specific project standards. Check datasheet for mating connector requirements to ensure mechanical and electrical compatibility within the system design.
Selection Notes
Select this component when a tool-free push-in termination is preferred over screw connections. Ensure the application voltage does not exceed 160 V. Verify that the wire gauge falls within the 16 AWG to 24 AWG range. Consider the black PBT housing material for environmental resistance.
Part Context
This component belongs to the Phoenix Contact Connexis series, which specializes in wire-to-board connectors. The series emphasizes rapid installation through push-in technology. Part 1500430 represents a specific configuration within this family, defined by its four-position layout and 3.81 mm spacing.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching pitch, current rating, and connection type.
FAQ
What is the contact resistance value?
The contact resistance is specified as 1.8 mΩ.
Is this connector suitable for high-voltage applications?
It has a rated surge voltage of 2.5 kV and a rated voltage of 160 V, suitable for standard industrial low-voltage circuits.
