1500432

Overview

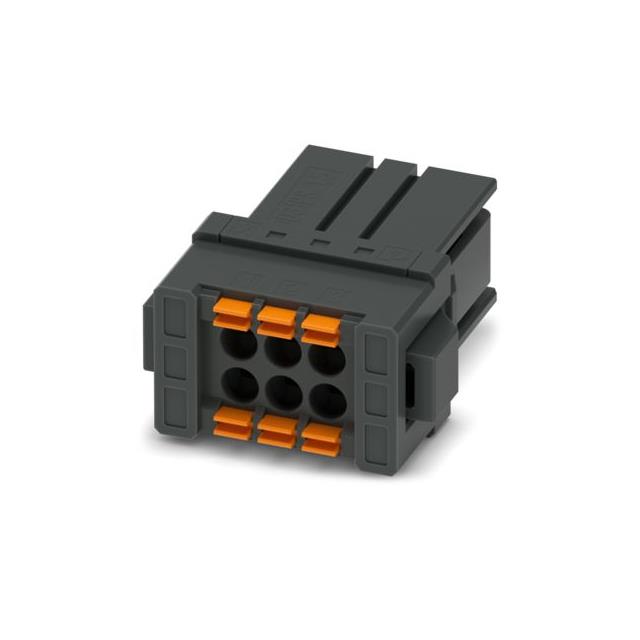

The Phoenix Contact 1500432 is a PCB connector from the DD31PS series, featuring a 6-position configuration with female sockets. It utilizes a 3.81mm pitch and operates at a rated voltage of 160 V (III/2). The component supports a nominal cross-section of 1.5 mm² and carries a nominal current rating of 8 A. It employs a Push-in connection type for contact connection and features tin (Sn) contact surfaces. The housing is black, and the unit is designed as a free-hanging in-line header.

Feature Summary

• Utilizes Push-in connection technology for secure wire termination without tools
• Features tin-plated contacts to ensure reliable electrical conductivity
• Designed as a free-hanging in-line header for flexible PCB integration

Applications

• Panel feed-through installations
• Connectors for flying leads
• PCB headers in industrial control systems

Procurement Notes

Verify that the specific part number matches the required pin count and pitch specifications for your design. Confirm that the operating environment stays within the rated voltage and current limits. Ensure compatibility with the Push-in termination method during assembly. Check insulation resistance requirements against system standards before finalizing procurement.

Selection Notes

Select this component when a 6-position female socket interface is required on a PCB. The 3.81mm pitch suits standard industrial wiring gauges up to 1.5 mm². Consider the 8 A current rating for load management. The Push-in feature simplifies assembly compared to screw terminals. Verify space constraints for the free-hanging form factor.

Part Context

This connector belongs to the CONNEXIS family, which integrates panel feed-throughs, flying lead connectors, and PCB headers. The DD31PS series specifically addresses printed circuit board mounting needs. It complements other components in the ecosystem for consistent connection solutions across different mounting styles.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify exact dimensional and electrical compatibility if considering alternative manufacturers.
