1500434

Overview

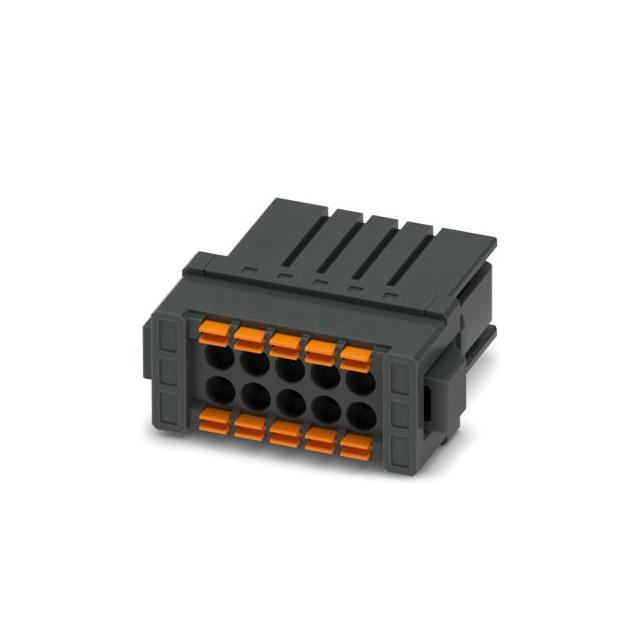

The Phoenix Contact 1500434 is a DD31PS 1,5/10-3,81-X PCB connector plug featuring 10 positions with female sockets. It utilizes a 3.81 mm pitch and supports a nominal cross-section of 1.5 mm². The component has a black housing, tin-plated contacts, and a rated current of 8 A. It operates at a rated voltage (III/2) of 160 V and meets UL 94 V-0 flammability standards. The design allows for free-hanging in-line mounting.

Feature Summary

• Free-hanging in-line configuration for flexible assembly integration
• Push-in spring connection technology for tool-free wiring
• Tin-plated contact surfaces ensuring reliable conductivity

Applications

• Industrial control panel wiring
• Signal distribution in automation systems
• PCB-to-wire interconnections

Procurement Notes

Verify the specific suffix -X against project requirements to ensure compatibility with mating headers. Confirm that the 160 V rating aligns with system voltage levels. Check mechanical constraints for the 15.2 mm height dimension during PCB layout planning.

Selection Notes

Select this model when a 10-position horizontal plug is required with a 3.81 mm spacing. Ensure the application does not exceed the 8 A current rating or 1.5 mm² wire capacity. Consider the free-hanging form factor if vertical mounting space is limited.

Part Context

This component belongs to the DD31 series of PCB connectors from Phoenix Contact. It is part of the COMBICON Connectors S product line, designed for standard industrial applications requiring reliable signal and power transmission through push-in connections.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
