1500451

Overview

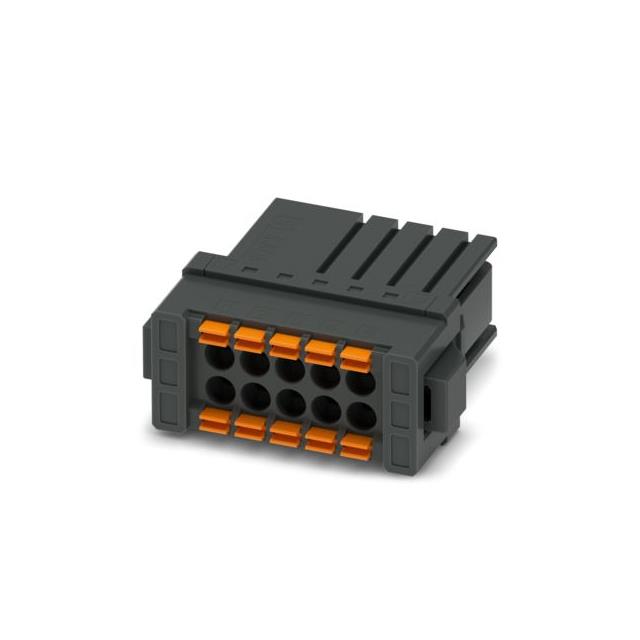

The Phoenix Contact 1500451 is a PCB connector from the DD31PS 1,5/.. product range. It features a 3.81 mm pitch and two rows with ten positions. The nominal current is 8 A at a rated voltage of 160 V (III/2). It utilizes push-in spring connections for conductor attachment and snap-in locking for mounting. The housing is black, and the contact surface is tin-plated.

Feature Summary

• Push-in spring connection technology enables tool-free wire termination
• Snap-in locking mechanism ensures secure mounting to the printed circuit board
• Compatible with CONNEXIS DD plug-in system for modular assembly

Applications

• Industrial control cabinet wiring
• Automation signal distribution
• Sensor and actuator interface connections

Procurement Notes

Verify the specific part number against official Phoenix Contact documentation to confirm pin count and pitch compatibility. Ensure the application environment matches the rated voltage and current specifications. Check for required accessories such as jumper wires or end plates if not included in the base component data.

Selection Notes

Select this component when a compact PCB connector with a 3.81 mm pitch is required. The push-in connection method is suitable for applications prioritizing rapid assembly without screwdrivers. Confirm that the nominal cross-section of 1.5 mm² aligns with the cable gauge used in the design.

Part Context

This component belongs to the DD31PS series, designed for reliable signal and power transmission in industrial environments. The series offers various position counts while maintaining consistent mechanical and electrical characteristics across the product line.

Replacement Considerations

Consult official Phoenix Contact substitution guides for verified alternatives. Generic equivalents may not match the specific push-in spring mechanism or CONNEXIS DD compatibility.
