150AYC10B

Overview

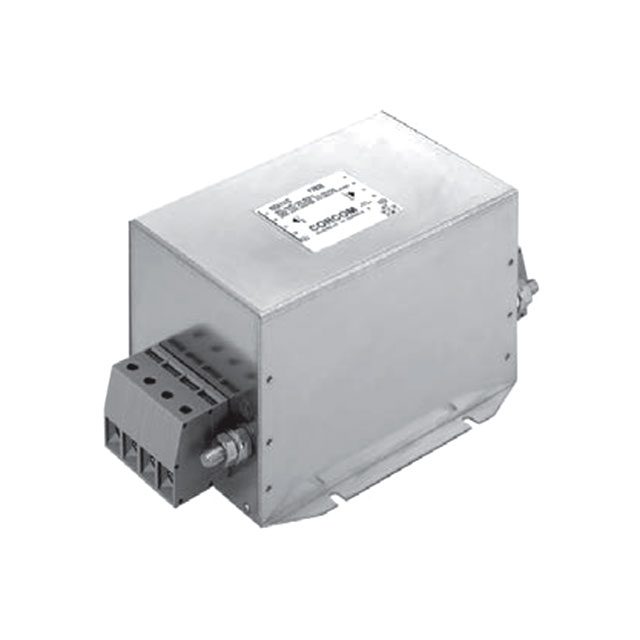

The TE Connectivity Corcom Filters 150AYC10B is a three-phase WYE RFI power line filter designed for high noise applications. It supports a maximum current of 180 amps and operates at 50/60Hz. The unit features chassis mounting with terminal block connections. It complies with international standards including EN133200 and UL 1283, making it suitable for industrial environments such as frequency converters.

Feature Summary

• Designed for three-phase, four-wire WYE wiring configurations
• Provides effective filtering in noisy industrial settings
• Complies with EN133200 and UL 1283 standards

Applications

• Frequency converters
• Industrial electronic equipment protection
• High noise industrial applications

Procurement Notes

Verify the specific voltage rating and leakage current requirements against the official datasheet before procurement. Confirm that the terminal block connection type matches your system interface. Ensure the chassis mounting dimensions fit the designated enclosure space. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this model when operating within a three-phase WYE configuration requiring robust EMI/RFI suppression. Consider the 180-amp maximum capacity for heavy-duty industrial loads. Evaluate the thermal performance in enclosed spaces due to high current handling. Verify compatibility with existing terminal block wiring practices.

Part Context

This component belongs to the AYC series of Corcom filters, which are engineered for cost-effective protection of sensitive electronics in demanding industrial environments. The series offers filtering capabilities up to 180 amps, addressing the needs of modern industrial machinery and power conversion systems.

Replacement Considerations

Public confirmed substitute part numbers: 150AYC10B-95.
