Product Detailed Parameters
- Description：LINE FLTR 440VAC 150A CHASS MNT
- Series：KEB
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：150 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

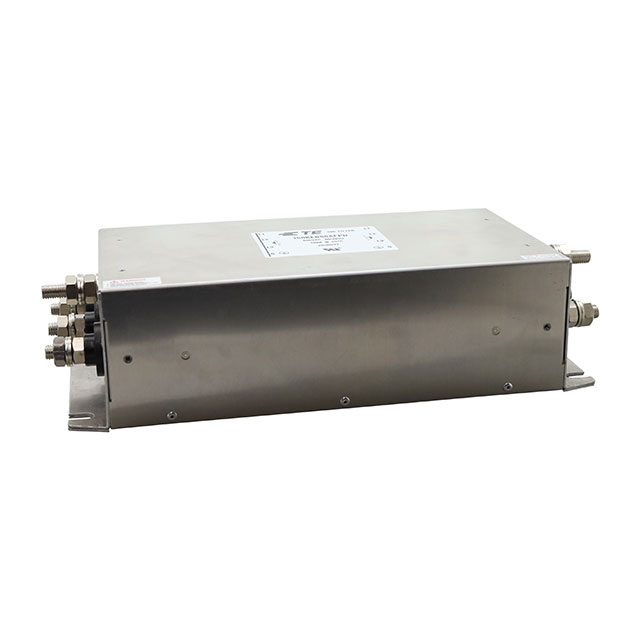

The 150KEBS6AFPD is a three-phase superior performance EMI power line filter manufactured by TE Connectivity / Corcom. It features a chassis mount design with screw termination for secure installation. The unit is rated for 440 VAC and supports a continuous current of 150 A at operating frequencies of 50 Hz and 60 Hz. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It operates within a temperature range of -25 C to +85 C and has a maximum leakage current of 20 mA. The component holds UL and CSA compliance certifications.
Feature Summary
- Provides superior performance electromagnetic interference filtering for three-phase power lines
- Designed for robust chassis mounting using screw termination connections
- Certified for safety compliance under UL and CSA standards
Applications
- Industrial machinery requiring three-phase power conditioning
- Commercial equipment needing high-current EMI suppression
- Power distribution systems operating at 440 VAC
Procurement Notes
Verify the exact part number 150KEBS6AFPD against official TE Connectivity documentation before procurement. Confirm that the 440 VAC rating and 150 A current capacity match the specific application requirements. Check for any obsolescence notices or lifecycle status updates directly from the manufacturer. Ensure compatibility with existing chassis mounting hardware and screw termination interfaces.
Selection Notes
Select this component when a three-phase EMI filter capable of handling 150 A at 440 VAC is required. The chassis mount style and screw termination define the physical integration method. Verify that the operating temperature range of -25 C to +85 C suits the environmental conditions. Ensure the 20 mA leakage current limit is acceptable for the connected sensitive electronics.
Part Context
This component belongs to the KEB series of power line filters from TE Connectivity / Corcom. The series focuses on high-current applications with superior EMI attenuation capabilities. The KEB series typically utilizes chassis mount designs suitable for industrial enclosures. This specific model represents a high-capacity solution within the broader Corcom filter portfolio.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity technical support for direct replacements or cross-references if this discontinued item is no longer sourced.
