Product Detailed Parameters
- Description：LINE FLTR 520VAC 150A CHASS MNT
- Series：KEB
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：150 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

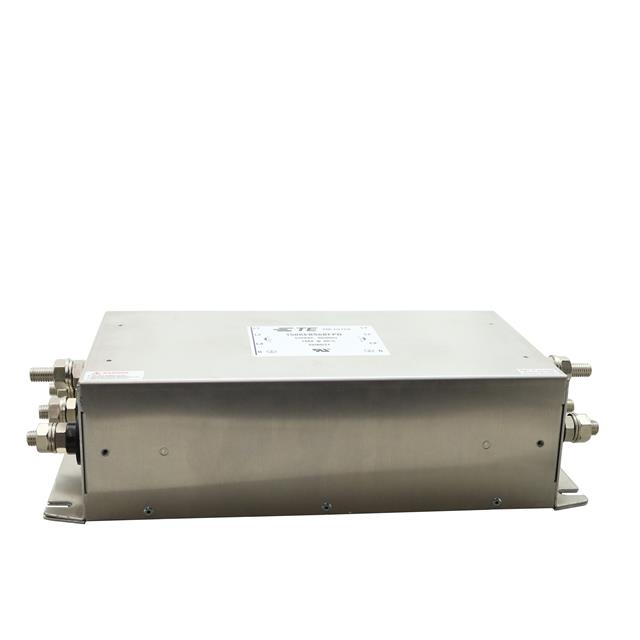

The 150KEBS6BFPD is a three-phase single-stage EMI power line filter manufactured by TE Connectivity Corcom. It features a threaded bolt flange mount configuration with M10 posts. The unit is rated for 150A continuous current and operates at 520VAC. It supports 50Hz and 60Hz frequencies within an operating temperature range of -25°C to +85°C.
Feature Summary
- Three-phase delta configuration for industrial power filtering
- Single-stage EMC/EMI attenuation design
- Threaded post mounting interface for secure installation
Applications
- Industrial machinery power conditioning
- Three-phase motor drive input protection
- General-purpose electrical equipment noise suppression
Procurement Notes
Verify component authenticity through authorized TE Connectivity distributors. Confirm lead times as availability may vary. Ensure mechanical fit matches M10 threaded post requirements. Validate voltage and current ratings against specific system loads before integration.
Selection Notes
Select this model for applications requiring high-current three-phase filtering. Ensure the enclosure supports the specified thermal operating range. Verify that the mounting structure accommodates the bolt flange dimensions. Compare attenuation requirements against datasheet specifications.
Part Context
This component belongs to the Corcom KEB series of power line filters. It is designed for robust industrial environments where significant electromagnetic interference suppression is required for three-phase systems. The series emphasizes durability and high current handling capabilities.
Replacement Considerations
Consult official TE Connectivity documentation for direct cross-references. Verify that any substitute maintains identical phase configuration, current rating, and mounting interface specifications to ensure system compatibility.
