150KEHD10ABSD

Overview

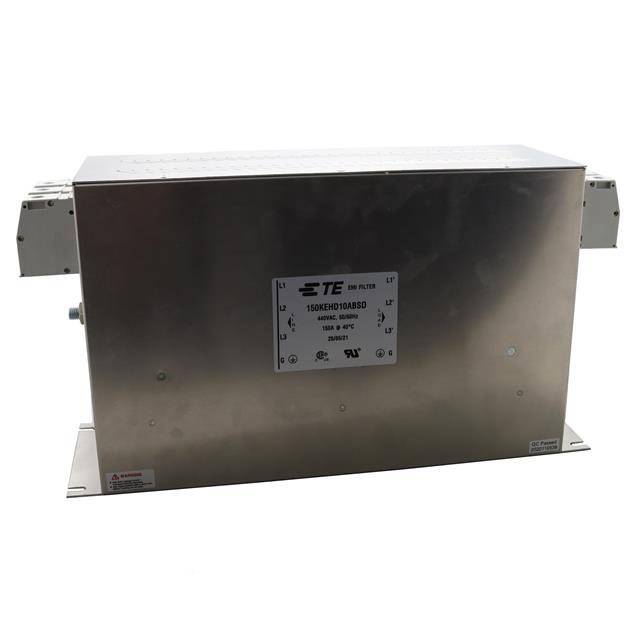

The 150KEHD10ABSD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity / Corcom. It features a dual-stage configuration designed for industrial applications operating at 440 VAC and 50 Hz or 60 Hz. The unit supports a continuous current rating of 150 A with a maximum leakage current of 20 mA. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It utilizes screw termination for secure electrical connections and is designed for chassis mounting. The component operates within a temperature range of -25 °C to +85 °C and holds UL and CSA compliance certifications.

Feature Summary

• Dual-stage filtering architecture for enhanced noise suppression
• Chassis mount design with screw termination for robust installation
• Certified for international safety standards including UL and CSA

Applications

• Industrial machinery requiring 440VAC power protection
• Three-phase equipment needing EMI/EMC interference reduction
• General-purpose industrial power conditioning systems

Procurement Notes

Verify the specific suffix ABSD against official TE Connectivity documentation to confirm terminal type and mounting style. Ensure the application voltage matches the 440 VAC rating. Confirm that the required current capacity does not exceed 150 A. Check for updated compliance certificates such as UL and CSA before integration. Validate physical dimensions for chassis compatibility.

Selection Notes

Select this model when high-current three-phase filtration is required for 440 VAC systems. The dual-stage design offers superior attenuation compared to single-stage units. Ensure the chassis provides adequate space for the 350 mm length and 160 mm width. Verify that the operating environment stays within the specified -25 °C to +85 °C range. Consider the screw termination method for long-term connection stability.

Part Context

This component belongs to the KEH series of power line filters from TE Connectivity / Corcom. The series is engineered for demanding industrial environments where reliable power quality is critical. The KEH models typically feature robust construction suitable for heavy-duty machinery. This specific part represents a high-capacity solution within the lineup.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
