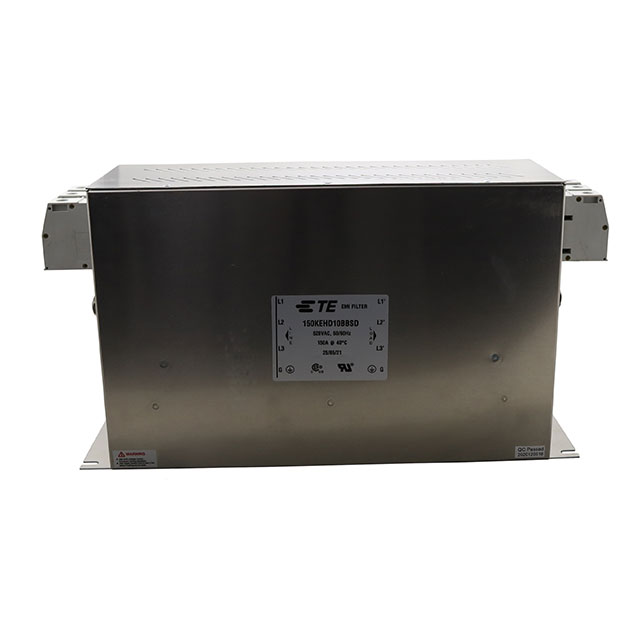

150KEHD10BBSD

$618.30

Description：LINE FLTR 520VAC 150A CHASS MNT
Series：KEH-BS
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:438c34c7389f Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 520VAC 150A CHASS MNT
Series：KEH-BS
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：150 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

150KEHD10BBSD

Overview

The TE Connectivity Corcom Filters 150KEHD10BBSD is a three-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration with terminal block connections. The unit supports a voltage rating of 520VAC and a current rating of 150A at 50Hz or 60Hz frequencies.

Feature Summary

Provides two-stage EMI/EMC filtering for three-phase power lines
Designed for secure chassis mounting applications
Utilizes terminal block connection style for electrical interfacing

Applications

AC/DC Drives
HVAC Systems
Robotics
UPS Systems

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm compatibility with your system requirements. Ensure that the chassis mounting dimensions and terminal block specifications match your installation constraints before procurement.

Selection Notes

Select this component when a three-phase solution is required for high-current industrial environments. The 150A rating and 520VAC support make it suitable for heavy-duty machinery. Confirm that the chassis mount form factor fits within the available enclosure space.

Part Context

This component belongs to the KEH-BS series from TE Connectivity Corcom Filters. It is engineered for robust noise suppression in demanding industrial settings. The design focuses on reliable performance under continuous operation conditions typical of motor drives and power conversion equipment.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and phase configuration to ensure functional equivalence.
