Product Detailed Parameters
- Description：LINE FLTR 440VAC 150A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：150 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

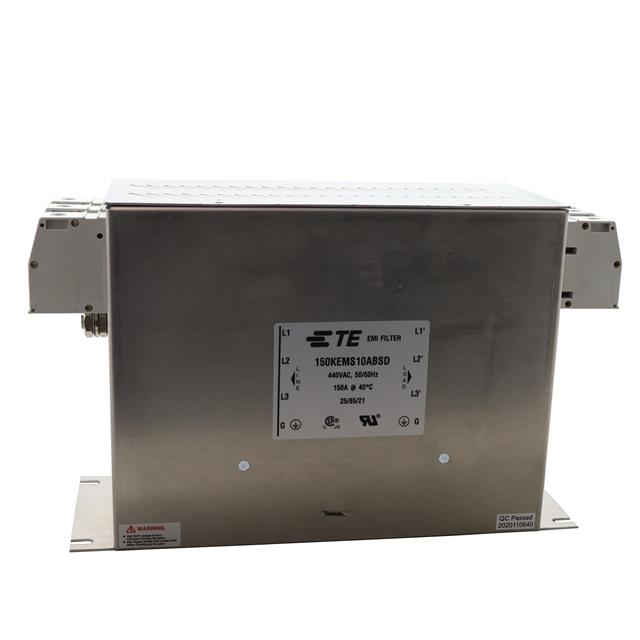

The 150KEMS10ABSD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a chassis mount style with screw termination for secure electrical connections. The unit is rated for 440 VAC and supports a current capacity of 150 A at operating frequencies of 50 Hz and 60 Hz. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It operates within a temperature range of -25 C to +85 C and has a leakage current of 20 mA. Compliance certifications include UL and CSA standards.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase power systems
- Designed for industrial applications requiring high current handling capabilities
- Constructed for durable chassis mounting with screw terminal connections
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Heavy-duty manufacturing equipment filtering
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential availability constraints. Confirm exact physical fitment against chassis specifications prior to installation. Ensure operational parameters align with system voltage and current requirements. Check for updated compliance documentation relevant to the target market regulations before deployment.
Selection Notes
Select this model when three-phase filtration is required for high-current loads up to 150 A. The chassis mount design suits fixed installations where space allows for larger footprints. Verify that the 20 mA leakage current meets safety standards for the specific application environment. Consider thermal management requirements given the maximum operating temperature limit.
Part Context
This component belongs to the Corcom KEM series of power line filters, designed for robust performance in demanding industrial environments. The series offers various current ratings and configurations to accommodate different power distribution needs. TE Connectivity provides technical resources and customer drawings to assist in integration planning.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Consult TE Connectivity technical support for direct replacements or updated equivalents.
