150KEMS10BBSD

Overview

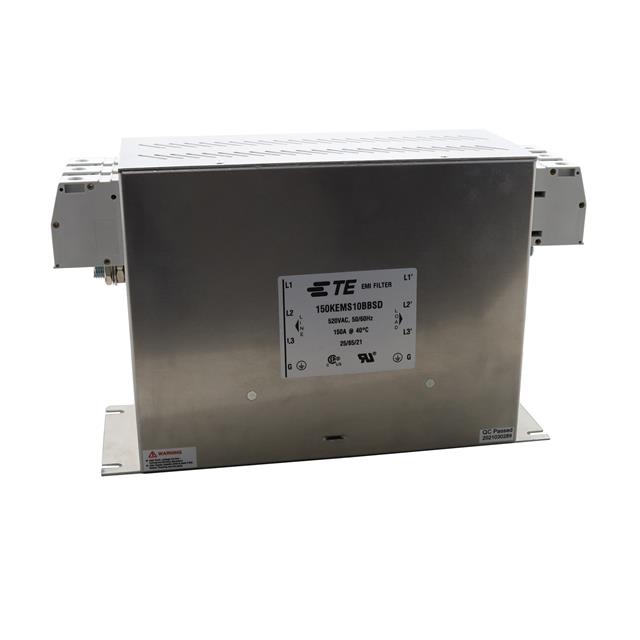

The TE Connectivity Corcom Filters 150KEMS10BBSD is a three-phase EMI/EMC power line filter designed for chassis mounting. It features a single-stage configuration with terminal block connections and flange mount installation. The component supports an operating frequency of 50 Hz or 60 Hz, with a rated voltage of 440 VAC and a current rating of 150 A. Maximum leakage current is specified at 20 mA. Operating temperature ranges from -25°C to +85°C. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Utilizes a single-stage filtering architecture for noise reduction
• Designed for secure chassis mounting via flange interface
• Supports high-current industrial applications up to 150 amperes

Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Medical equipment power supplies
• Commercial electronic device EMC compliance

Procurement Notes

Verify the exact part number against official TE Connectivity documentation to confirm specifications. Ensure compatibility with system voltage ratings of 440 VAC and current requirements of 150 A. Confirm that chassis mounting dimensions align with enclosure design constraints. Check for required certifications such as UL and CSA compliance before integration into final assemblies.

Selection Notes

Select this model when three-phase EMI filtering is required for high-current applications. Consider the physical size constraints due to its 350 mm length. Verify terminal block connection suitability for wiring harnesses. Evaluate thermal management needs given the 85°C maximum operating temperature limit. Ensure the single-stage design meets specific attenuation requirements for the target application.

Part Context

This component belongs to the TE Connectivity Corcom KEM-BS series of power line filters. The series offers various current ratings and configurations for three-phase systems. These filters are engineered for robust performance in demanding environments, providing reliable noise suppression while maintaining electrical safety standards across global markets.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
