Product Detailed Parameters
- Description：LINE FLTR 440VAC 150A CHASS MNT
- Series：KEM
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：150 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

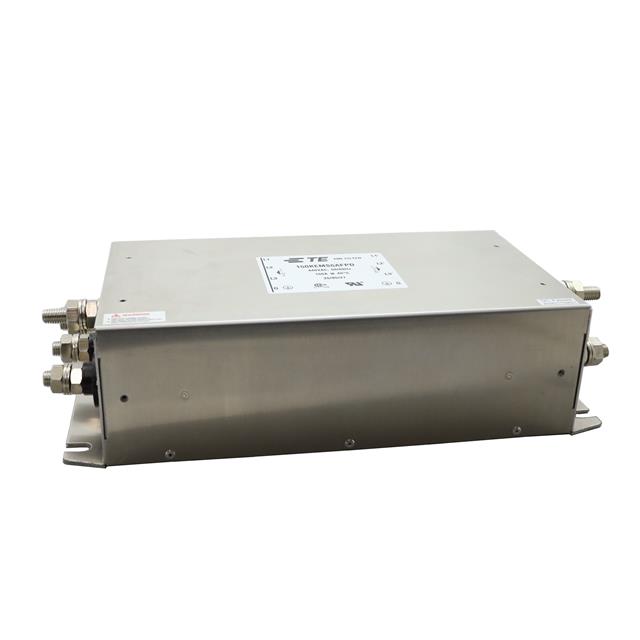

The 150KEMS6AFPD is a three-phase superior performance EMI filter manufactured by TE Connectivity / Corcom. It features a chassis mount design with screw termination and is rated for 440 VAC at 150 A. The unit operates at 50 Hz or 60 Hz with a maximum leakage current of 20 mA. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It supports an operating temperature range from -25 C to +85 C and holds UL and CSA compliance certifications.
Feature Summary
- Provides superior performance electromagnetic interference filtering for three-phase power lines
- Designed for secure chassis mounting using screw termination connections
- Engineered for high current applications up to 150 Amperes
Applications
- Industrial machinery power conditioning
- Three-phase equipment noise suppression
- Power line filtering for heavy-duty electrical systems
Procurement Notes
Verify component status as the part is listed as obsolete. Confirm availability through authorized distributors or secondary markets. Ensure compatibility with existing chassis mounting configurations and screw termination requirements. Check for updated datasheets regarding physical dimensions and electrical ratings before integration into new designs.
Selection Notes
Select this component for three-phase systems requiring high current handling and superior EMI attenuation. Verify that the 440 VAC rating and 150 A capacity match the application load. Ensure the chassis mount style and screw terminals fit the enclosure design. Consider the operating temperature range and leakage current specifications for safety compliance.
Part Context
This component belongs to the KEM series of power line filters from TE Connectivity / Corcom. The series focuses on high-performance electromagnetic interference suppression for industrial environments. The specific model integrates robust construction suitable for demanding power conditioning tasks.
FAQ
What is the maximum leakage current for this filter?
The maximum leakage current is specified as 20 mA.
Is this filter compatible with 50 Hz and 60 Hz frequencies?
Yes, the filter is designed to operate at both 50 Hz and 60 Hz working frequencies.
