Product Detailed Parameters
- Description：LINE FLTR 520VAC 150A CHASS MNT
- Series：KEM
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：150 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

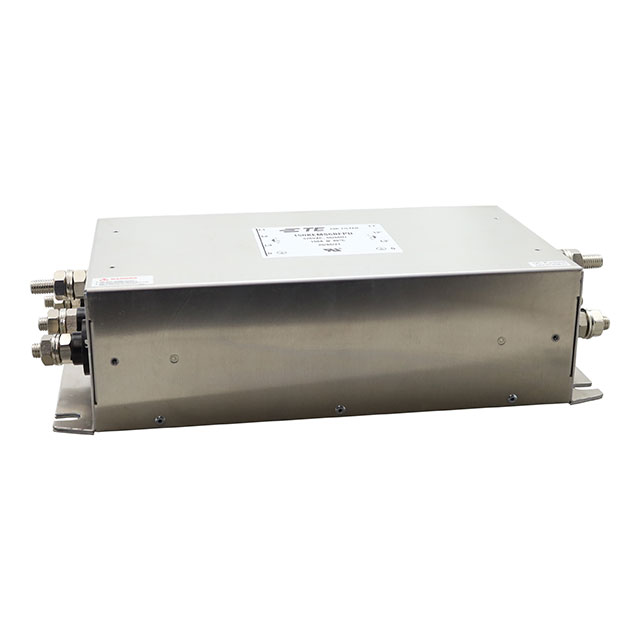

The 150KEMS6BFPD is a three-phase superior performance EMI filter manufactured by TE Connectivity / Corcom. It supports a rated voltage of 520 VAC and a current rating of 150 A at operating frequencies of 50 Hz and 60 Hz. The unit features chassis mounting with screw termination and has a maximum leakage current of 20 mA. Physical dimensions are 373 mm in length, 220 mm in width, and 91 mm in height. It operates within a temperature range of -25 C to +85 C and holds UL and CSA compliance certifications.
Feature Summary
- Provides superior performance electromagnetic interference filtering for three-phase power lines
- Designed for high-current industrial applications with a 150 A continuous rating
- Utilizes a robust chassis mount construction with screw terminals for secure installation
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Heavy-duty manufacturing equipment
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to limited availability status. Confirm specific voltage and current requirements match the 520 VAC and 150 A ratings before integration. Check for updated lifecycle notices as supply constraints may affect long-term procurement planning.
Selection Notes
Select this model when superior EMI attenuation is required for three-phase circuits exceeding standard ratings. Ensure the mounting environment accommodates the specified physical dimensions and thermal operating range. Verify that the screw termination style aligns with existing panel infrastructure and wiring specifications.
Part Context
This component belongs to the KEM series of power line filters from TE Connectivity / Corcom. The series is engineered for demanding industrial environments requiring reliable noise suppression. The part number indicates specific electrical characteristics including the 150 A current capacity and 520 VAC voltage rating tailored for delta configurations.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct replacements or cross-reference options based on specific application constraints.
