Product Detailed Parameters
- Description：LINE FLTR 440VAC 150A CHASS MNT
- Series：KEP-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：150 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

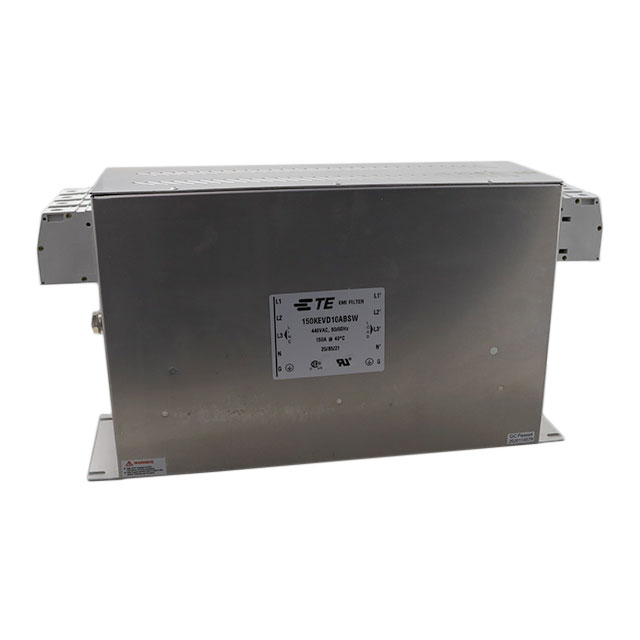

The TE Connectivity Corcom Filters 150KEPS10ABSW is a three-phase superior performance EMI filter designed for industrial power line applications. It operates at a rated voltage of 440 VAC and supports a continuous current of 150 A at frequencies of 50 Hz and 60 Hz. The unit features chassis mount installation with screw termination and exhibits a leakage current of 20 mA. Certified by UL and CSA, it functions within an operating temperature range of -25°C to +85°C. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height.
Feature Summary
- Provides superior electromagnetic interference suppression for three-phase power systems
- Engineered for robust chassis mounting in industrial environments
- Ensures compliance with major international safety standards
Applications
- Industrial equipment requiring EMI/RFI noise reduction
- Three-phase power conditioning systems
- Heavy machinery power input stages
Procurement Notes
Verify component authenticity through authorized channels due to potential supply chain variations. Confirm technical specifications against the official datasheet prior to integration. Ensure compatibility with existing chassis mounting hardware and terminal connections. Review environmental ratings for suitability in intended operational conditions.
Selection Notes
Select this model for high-current three-phase applications requiring significant noise attenuation. Compare leakage current limits and physical footprint against system constraints. Validate voltage ratings against network specifications. Consider thermal management requirements given the operating temperature range.
Part Context
This component belongs to the KEPS series of three-phase power line filters from TE Connectivity Corcom Filters. The series is characterized by high-performance EMI suppression capabilities tailored for demanding industrial power applications. These filters are engineered to meet stringent regulatory requirements while maintaining structural integrity under heavy electrical loads.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference availability through official manufacturer resources before considering alternative components.
