150KEPS10BBSW

Overview

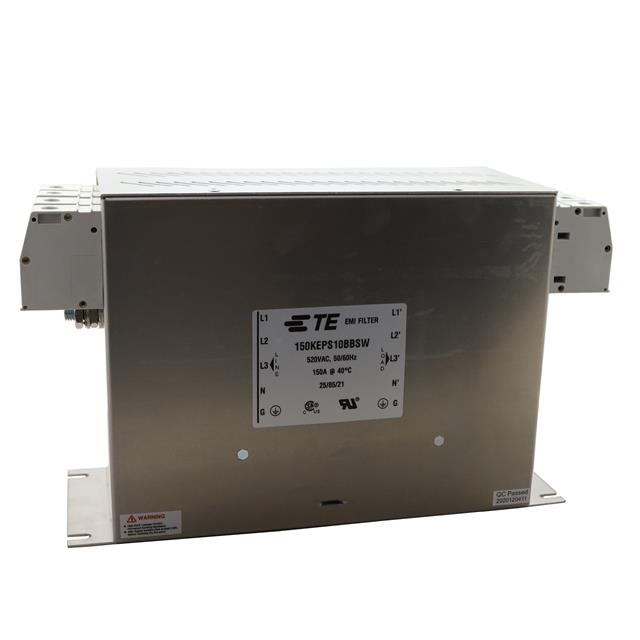

The TE Connectivity Corcom Filters 150KEPS10BBSW is a three-phase EMC/EMI power line filter designed for industrial applications. It features a single-stage configuration with a voltage rating of 520 VAC and a current capacity of 150 A. The unit operates at frequencies of 50 Hz or 60 Hz and utilizes a chassis mount installation style with terminal block connections. Certified by UL, CSA, and VDE, it supports a wide operating temperature range from -25°C to +85°C.

Feature Summary

• Three-phase EMI/EMC filtering capability
• Single-stage attenuation design
• Chassis mount construction
• Terminal block termination

Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Heavy-duty electrical equipment noise suppression

Procurement Notes

Verify the specific terminal block type and mounting hole dimensions against your chassis design before ordering. Confirm that the 520 VAC rating aligns with your system's nominal voltage. Ensure the 150 A continuous current requirement does not exceed the filter's thermal limits under your specific ambient conditions. Check for any required accessory kits for proper installation.

Selection Notes

Select this model when high-current three-phase filtering is required in a compact single-stage format. It is suitable for environments where chassis mounting is preferred over panel mounting. Consider the leakage current specifications if sensitive downstream electronics are present. Verify compatibility with your existing wiring terminals.

Part Context

This component belongs to the KEP series of power line filters from TE Connectivity Corcom. The series is engineered for robust performance in demanding industrial settings. The 150KEPS10BBSW variant specifically addresses high-amperage three-phase needs with standardized mounting and connection interfaces.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
