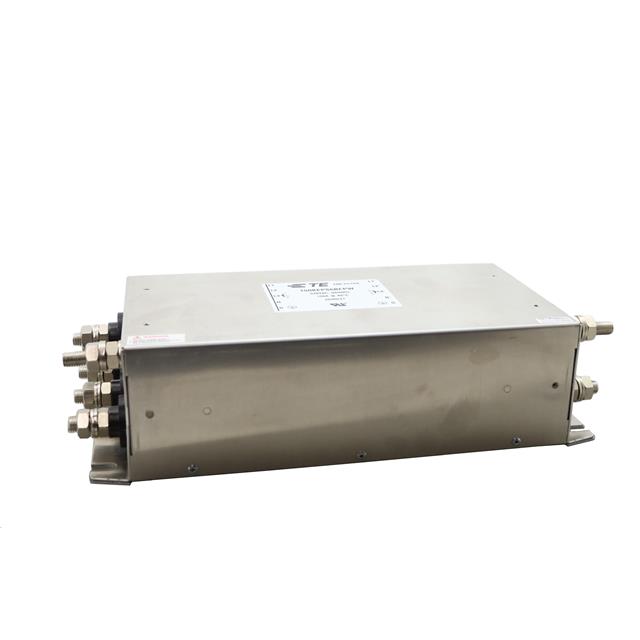

150KEPS6BFPW

Overview

The 150KEPS6BFPW is a three-phase EMI filter manufactured by TE Connectivity Corcom. It features a chassis mount style with screw termination for secure installation. The unit operates at a rated voltage of 520 VAC and supports a current rating of 150 A. Designed for 50 Hz and 60 Hz frequencies, it maintains a leakage current of 8 mA. The device functions within an ambient temperature range of -25 °C to +85 °C. Physical dimensions are 135 mm in width, 202 mm in length, and 80 mm in height. It holds UL and CSA compliance certifications.

Feature Summary

• Provides superior performance electromagnetic interference mitigation for industrial power systems
• Engineered specifically for use with power converters and demanding industrial applications
• Utilizes a robust chassis mount design with screw terminals for reliable electrical connections

Applications

• Power converter systems requiring high-current filtering
• Industrial automation equipment
• General industrial machinery protection

Procurement Notes

Verify the exact part number against official manufacturer documentation before procurement. Confirm that the 520 VAC rating and 150 A current capacity align with your specific system requirements. Ensure compatibility with chassis mounting specifications and screw terminal interfaces. Check for any updated regulatory compliance status or alternative sourcing options due to potential supply chain variations.

Selection Notes

Select this component when superior EMI attenuation is required for three-phase circuits operating at 150 A. Ensure the application environment falls within the specified -25 °C to +85 °C temperature range. Verify that the 520 VAC nominal voltage matches the power source. Confirm that chassis mounting space accommodates the 135 x 202 x 80 mm footprint and that screw termination methods are compatible with the wiring infrastructure.

Part Context

This component belongs to the KEPS series of three-phase EMI filters from TE Connectivity Corcom. The series is characterized by superior performance levels compared to standard general-purpose filters. These units are designed to handle significant current loads while maintaining electromagnetic compatibility in noisy industrial environments. The KEPS series typically utilizes advanced internal components to achieve higher attenuation across critical frequency bands.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the official TE Connectivity datasheet for cross-reference information or contact the manufacturer directly for validated replacement options.
