Product Detailed Parameters
- Description：LINE FLTR 440VAC 150A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：150 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

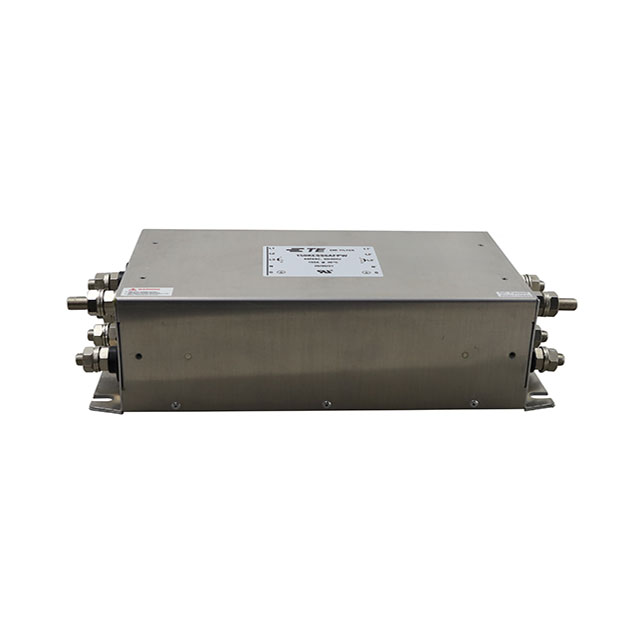

The 150KESS6AFPW is a three-phase power line filter manufactured by TE Connectivity Corcom. It features a chassis mount design with screw termination for secure installation. The unit is rated for 150 A current and 440 VAC voltage, operating at 50 Hz or 60 Hz frequencies. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It supports an operating temperature range from -25 °C to +85 °C and has a leakage current of 6 mA. Compliance certifications include UL and CSA standards.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Utilizes a single-stage filtering architecture
- Designed for direct chassis mounting via threaded bolt flange
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Commercial electrical distribution panels
Procurement Notes
Verify the specific suffix configuration against official datasheets to ensure correct terminal type and mounting style compatibility. Confirm that the 150 A rating aligns with the system's continuous load requirements. Check for updated compliance documentation such as RoHS status before finalizing procurement orders.
Selection Notes
Select this component when a high-current three-phase filter is required for chassis-mounted applications. Ensure the enclosure allows for the specified physical dimensions of 350 mm by 160 mm by 92 mm. Verify that the screw termination method matches the available busbar or cable lug configurations in the target assembly.
Part Context
This model belongs to the KES series of power line filters from TE Connectivity Corcom. The series offers various current ratings for three-phase applications. The 150KESS6AFPW variant specifically addresses high-current needs with a standardized nut wye configuration suitable for industrial environments requiring robust EMI attenuation.
Replacement Considerations
Consult official substitution guides for equivalent current ratings and mounting styles. Verify that any alternative part maintains the same 440 VAC rating and chassis footprint to ensure mechanical fit without modification.
