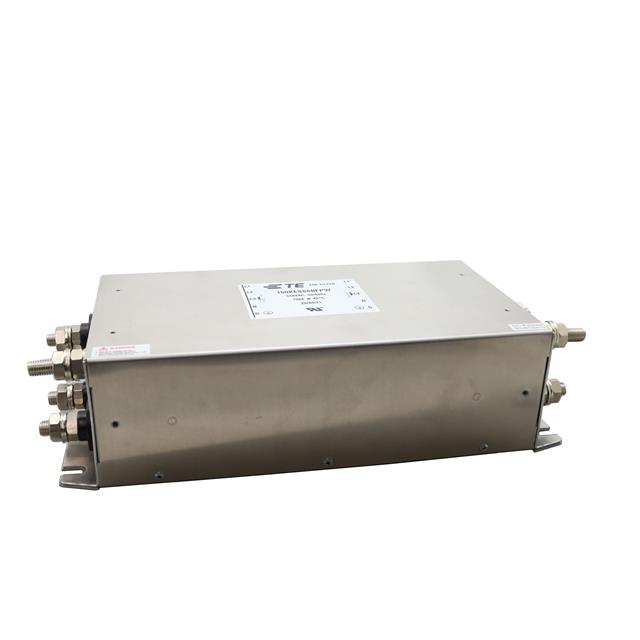

150KESS6BFPW

Overview

The 150KESS6BFPW is a three-phase general-purpose EMI filter manufactured by TE Connectivity / Corcom. It supports a rated current of 150 A and operates at voltages up to 520 VAC. The unit is designed for chassis mounting with screw termination. It functions at frequencies of 50 Hz and 60 Hz, with a maximum leakage current of 8 mA. The physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It complies with UL and CSA standards.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Designed for secure chassis mounting using screw connections
• Complies with UL and CSA safety certification requirements

Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Commercial power distribution units

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels due to potential supply chain variations. Confirm specific revision levels against official datasheets prior to integration. Ensure mechanical fitment matches chassis specifications given the fixed dimensional constraints. Validate compliance documentation availability for target market regulatory requirements before final procurement decisions.

Selection Notes

Select this model when high-current three-phase filtering is required within specified voltage limits. Evaluate thermal management capabilities relative to the 85 C maximum operating temperature. Compare leakage current specifications against sensitive equipment requirements. Assess physical space constraints against the defined length, width, and height parameters for proper enclosure integration.

Part Context

This component belongs to the KES series of power line filters from TE Connectivity / Corcom. The series focuses on general-purpose EMI suppression for industrial applications. The part number indicates specific electrical ratings and mounting configurations distinct from other series variants. It represents a standardized solution for three-phase power integrity maintenance.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing system architectures if direct replacement is necessary. Consult manufacturer resources for updated product line information regarding discontinued or superseded components.
