Product Detailed Parameters
- Description：LINE FLTR 440VAC 150A CHASS MNT
- Series：KEV
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：150 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

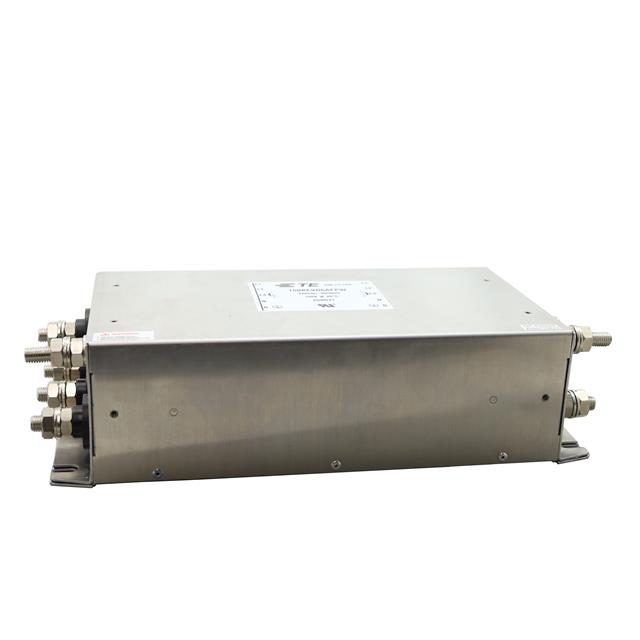

The 150KEVD10AFPW is a three-phase very high-performance EMI filter from the KEV series by TE Connectivity / Corcom. It supports a rated voltage of 440 VAC and a continuous current of 150 A at operating frequencies of 50 Hz and 60 Hz. The unit features a two-stage design with screw termination and chassis mount installation. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It has a leakage current of 15 mA and operates within a temperature range of -25 C to +85 C. The component holds UL and CSA compliance certifications.
Feature Summary
- Three-phase very high-performance EMI filtering capability
- Two-stage attenuation architecture for enhanced noise suppression
- Chassis mount configuration with screw terminal connections
Applications
- Industrial power distribution systems requiring EMI mitigation
- Three-phase machinery protection against electromagnetic interference
- Power conditioning units operating at 440 VAC
Procurement Notes
Verify availability status as the component lifecycle is listed as obsolete or end-of-life. Confirm specific supplier stock levels and lead times directly with authorized distributors. Ensure compatibility with existing chassis mounting hardware and screw terminal specifications before procurement. Check for RoHS3 compliance documentation if required for your region.
Selection Notes
Select this model for applications requiring 150 A capacity at 440 VAC with high-performance filtering. Compare leakage current ratings against safety standards. Verify physical space constraints against the 350x160x92 mm footprint. Consider thermal management requirements given the +85 C maximum operating temperature limit.
Part Context
This component belongs to the KEV series of power line filters manufactured by TE Connectivity / Corcom. The series focuses on three-phase EMI/EMC solutions for industrial environments. The part number indicates specific electrical ratings and connection types within this product family.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided data. Consult TE Connectivity technical support for obsolescence management and potential cross-reference options.
