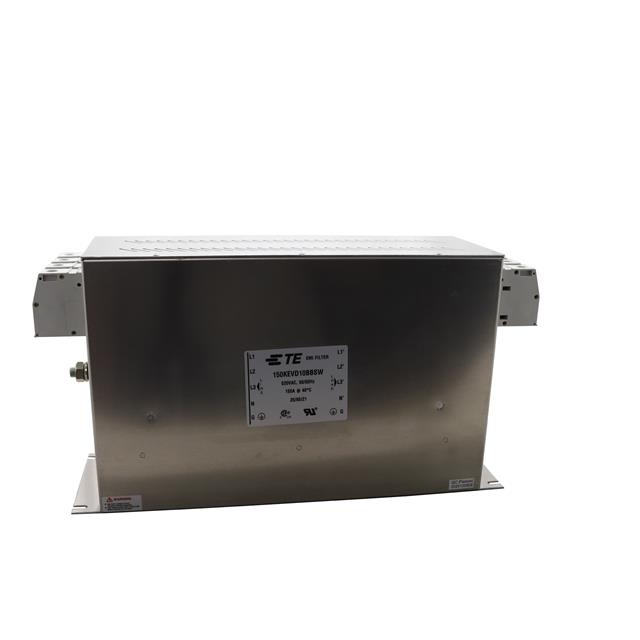

150KEVD10BBSW

$680.68

Description：LINE FLTR 520VAC 150A CHASS MNT
Series：KEV-BS
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:cde83c30b1a6 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 520VAC 150A CHASS MNT
Series：KEV-BS
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：150 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

150KEVD10BBSW

Overview

The TE Connectivity Corcom Filters 150KEVD10BBSW is a three-phase EMC/EMI power line filter designed for chassis mounting. It features a dual-stage configuration and terminal block connections. The unit supports a rated current of 150 A at 520 VAC with operation at 50 Hz or 60 Hz frequencies.

Feature Summary

Three-phase EMI/EMC filtering capability
Dual-stage circuit architecture
Terminal block connection style

Applications

Industrial machinery power conditioning
Three-phase motor drive systems
Heavy-duty manufacturing equipment

Procurement Notes

Verify the specific voltage rating and current capacity against your system requirements before ordering. Confirm that the terminal block interface matches your wiring infrastructure. Ensure the chassis mounting dimensions fit your enclosure layout. Check for any recent product change notices regarding component sourcing.

Selection Notes

Select this model when high-current three-phase filtering is required in industrial environments. The dual-stage design provides enhanced noise attenuation compared to single-stage units. Ensure the operating temperature range meets your application's thermal conditions. Verify compatibility with the specific frequency of your power supply network.

Part Context

This component belongs to the Corcom KES series of power line filters, which are engineered for robust performance in demanding electrical environments. The series offers various current ratings and configurations to suit different industrial power distribution needs.

Replacement Considerations

Public confirmed substitute part numbers were not identified in the provided documentation. Consult manufacturer resources for potential cross-references if direct replacement is necessary.
