Product Detailed Parameters
- Description：LINE FLTR 520VAC 150A CHASS MNT
- Series：KEV
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：150 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

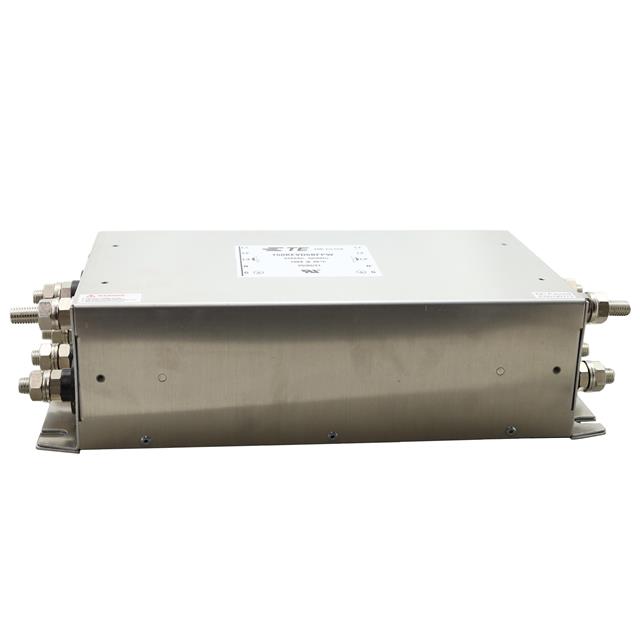

The 150KEVD10BFPW is a three-phase Wye EMC/EMI line filter manufactured by TE Connectivity Corcom Filters. It supports a rated current of 150 A and operates at voltages up to 520 VAC. The device functions at frequencies of 50 Hz and 60 Hz. It utilizes flange mounting for chassis installation and features terminal block connections. This component belongs to the Kev Series, designed for high-performance power line filtering applications.
Feature Summary
- Provides dual-stage EMI/EMC filtering for three-phase power systems
- Engineered for high-current industrial environments with robust thermal management
- Supports secure flange mounting and terminal block electrical connections
Applications
- Industrial motor drive systems requiring stringent noise suppression
- Large-scale manufacturing equipment power distribution units
- Heavy-duty renewable energy inverter installations
Procurement Notes
Verify the specific voltage rating and current capacity against your system requirements before integration. Confirm that the flange mounting dimensions align with your chassis design. Ensure compatibility with terminal block connection methods. Check for any recent product change notices or lifecycle status updates from the manufacturer to ensure long-term availability and support.
Selection Notes
Select this model when high current handling up to 150 A is required alongside effective three-phase noise attenuation. Consider the physical constraints of the flange mount and terminal block interface during mechanical design. Evaluate the operating temperature range to ensure it meets environmental conditions. Compare leakage current specifications if sensitive ground fault protection is part of the system architecture.
Part Context
This component is part of the Kev Series from TE Connectivity Corcom Filters, which specializes in high-performance power line filters. The series is recognized for its ability to handle significant electrical loads while maintaining strict electromagnetic interference standards. It serves as a critical component in ensuring power quality and compliance in demanding industrial sectors.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official selector guide or technical support for verified cross-reference options that match the 150 A current rating and three-phase configuration.
