150TDS84C

Overview

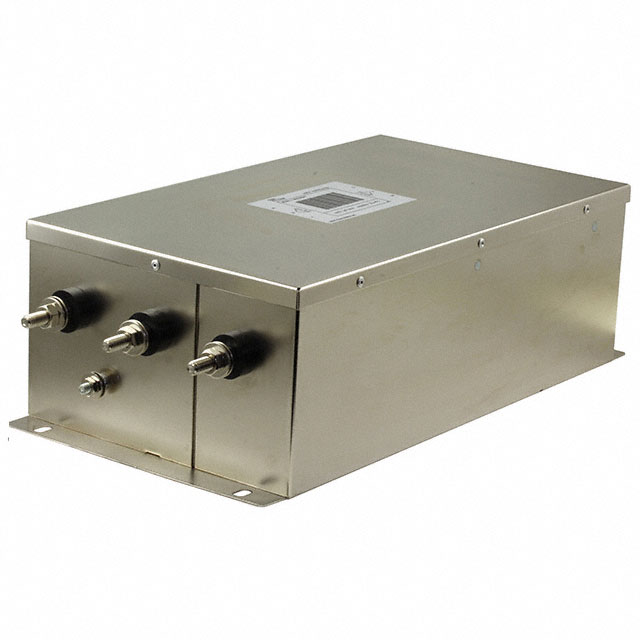

The Delta Electronics 150TDS84C is a three-phase power line filter designed for chassis mounting. It features a rated voltage of 480VAC and supports a current capacity of 150A. The unit utilizes screw-to-screw termination methods for secure electrical connections. This component is engineered to mitigate electromagnetic interference in industrial power distribution systems, ensuring compliance with emission standards while maintaining stable operation under high-load conditions.

Feature Summary

• Three-phase filtering capability for balanced power lines
• Chassis-mount construction for robust industrial installation
• Screw-to-screw termination for reliable connectivity

Applications

• Industrial machinery power conditioning
• Manufacturing plant electrical panels
• High-current AC motor drive input stages

Procurement Notes

Verify the specific datasheet revision to confirm terminal torque specifications and mounting hole dimensions prior to integration. Ensure the supply voltage matches the 480VAC rating to prevent insulation failure. Confirm that the enclosure provides adequate thermal dissipation for continuous 150A operation. Cross-reference the order code with manufacturer documentation to validate the exact configuration and certification status.

Selection Notes

Select this model when three-phase noise suppression is required for loads exceeding standard single-phase limits. The chassis design suits panel-integrated installations where space efficiency is critical. Verify that the ambient temperature range aligns with the operational environment to maintain filter efficacy. Consider the physical footprint and terminal accessibility during system layout planning.

Part Context

Delta Electronics manufactures industrial power components including filters and drives. The 150TDS84C belongs to their power line filter series, targeting applications requiring significant current handling and electromagnetic compatibility. These products support automation infrastructure by protecting sensitive equipment from line disturbances.

Replacement Considerations

Consult official Delta documentation for direct cross-references. Verify that any substitute maintains identical phase configuration, voltage rating, and current capacity. Ensure mechanical mounting interfaces are compatible to avoid structural modifications.
