150TYS10

Overview

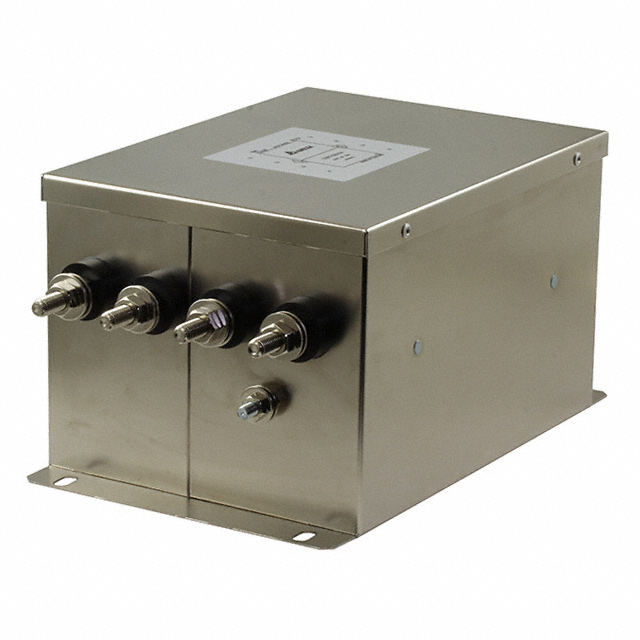

The Delta Electronics 150TYS10 is a high-performance, three-phase, four-wire power line filter designed for industrial applications. It features a chassis mount configuration with screw-to-screw connections for secure installation. The unit is rated for a nominal voltage of 480VAC and supports a continuous current of 150A. Key electrical parameters include a capacitance (Cx) of 6.6µF and a leakage capacitance (Cy) of 6.6nF. The inductance (L) is specified at 0.11mH, providing effective noise attenuation for sensitive equipment operating in high-power environments.

Feature Summary

• Provides high-performance electromagnetic interference suppression for three-phase power systems.
• Utilizes a robust chassis mount design with screw terminals for reliable mechanical stability.
• Engineered to handle high continuous current loads up to 150A in industrial settings.

Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Sensitive electronic equipment noise filtering

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct terminal configuration and mounting hardware compatibility. Confirm that the required current rating of 150A and voltage rating of 480VAC align with the system design specifications before procurement. Cross-reference the part number with the latest revision to avoid obsolete components.

Selection Notes

Select this component when a three-phase, four-wire topology is required for high-current applications. Ensure the available chassis space accommodates the physical dimensions of the filter. Verify that the system's harmonic content and transient requirements are within the filter's operational limits as defined in the technical documentation.

Part Context

This component belongs to Delta Electronics' series of high-performance power line filters. These units are engineered to meet stringent electromagnetic compatibility standards for industrial power distribution. The 150TYS10 variant specifically addresses the needs of heavy-duty three-phase systems requiring significant current capacity and noise reduction.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Ensure any replacement maintains the same three-phase, four-wire configuration, 480VAC rating, and 150A current capacity. Verify that physical mounting dimensions and terminal types match the existing installation constraints.
