Headers, Male Pins Overview

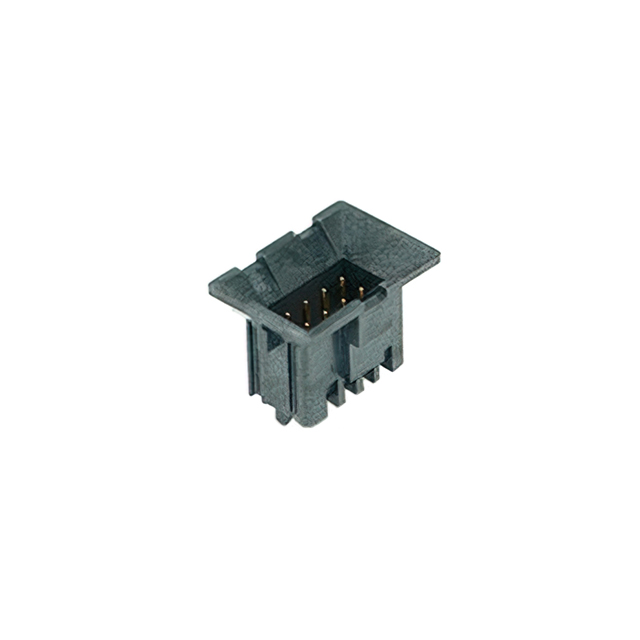

The Molex 151013-4512 is a Milli-Grid shrouded header connector designed for through-hole mounting. It features a 2.00mm pitch and a dual-row configuration with 12 positions. The contacts are male pins made of phosphor bronze, plated with gold to ensure reliable signal transmission. Rated for 2A current and 125V voltage, the housing is constructed from black liquid crystal polymer (LCP) with a UL 94 V-0 flammability rating. It operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Shrouded design provides alignment and protection for mating connections.
• Gold-plated phosphor bronze contacts offer corrosion resistance and conductivity.
• Liquid crystal polymer housing ensures high thermal stability and flame retardancy.

Headers, Male Pins Applications

• Wire-to-board interconnections
• Panel-to-board signal routing
• General electronic circuit board assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix against the official Molex datasheet to confirm contact plating thickness and packaging format. Ensure the selected variant matches the required pin count and row configuration for the target PCB layout. Cross-reference RoHS compliance status directly with the manufacturer's certification documents prior to procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row header with a precise 2.00mm pitch is required. The shrouded structure is suitable for applications needing guided mating. Verify that the 2A current rating and 125V voltage limit align with the system's electrical requirements and operating temperature environment.

Headers, Male Pins Part Context

This part belongs to the Molex Milli-Grid series, which specializes in compact, high-density interconnect solutions. The 151013 series specifically addresses needs for vertical, through-hole headers in space-constrained designs. It complements matching receptacle housings within the same product family.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Molex 151013 series headers with identical pitch and row count. Verify mechanical dimensions and electrical ratings before replacing with components from different manufacturers to ensure PCB footprint compatibility.
