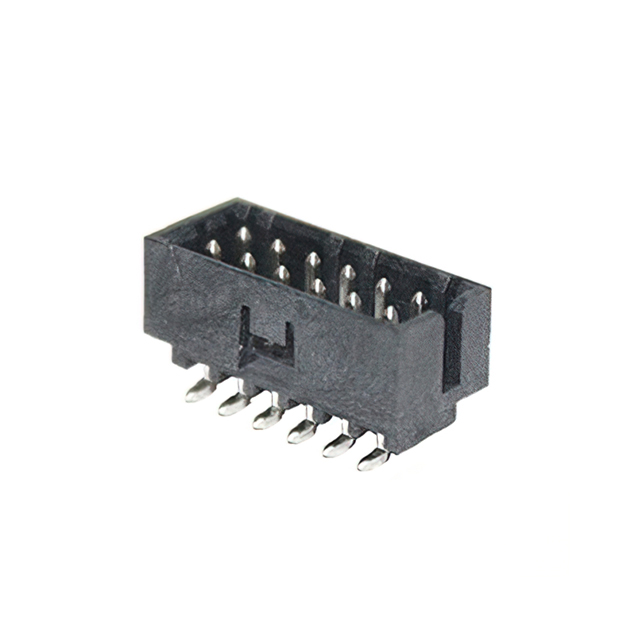

1511181490

$1.31

Description：MGRID SHRD HDR SMT/PEG&CAP 2.5SN
Series：Milli-Grid 151118
Mfr：Molex
Package：Tube

SKU:e8fe074d5730 Category: Headers, Male Pins Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1511181490 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is MGRID SHRD HDR SMT/PEG&CAP 2.5SN. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1511181490

Description：MGRID SHRD HDR SMT/PEG&CAP 2.5SN
Series：Milli-Grid 151118
Mfr：Molex
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：40
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Detent Lock
Contact Length - Mating：0.142" (3.60mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.252" (6.40mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：78.7µin (2.00µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
Features：Board Guide, Glow Wire Compliant, Pick and Place
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A
Voltage Rating：125V

Headers, Male Pins datasheet and documents for 1511181490

1511181490

Headers, Male Pins Overview

The Molex part number 1511181490 is a Milli-Grid header connector designed for surface mount applications. It features a dual-row, vertical configuration with a 2.00mm pitch and accommodates 40 circuits. The contacts are plated with tin (Sn) and include mounting pegs along with pick-and-place caps to facilitate automated assembly processes.
