151119-3112

Headers, Male Pins Overview

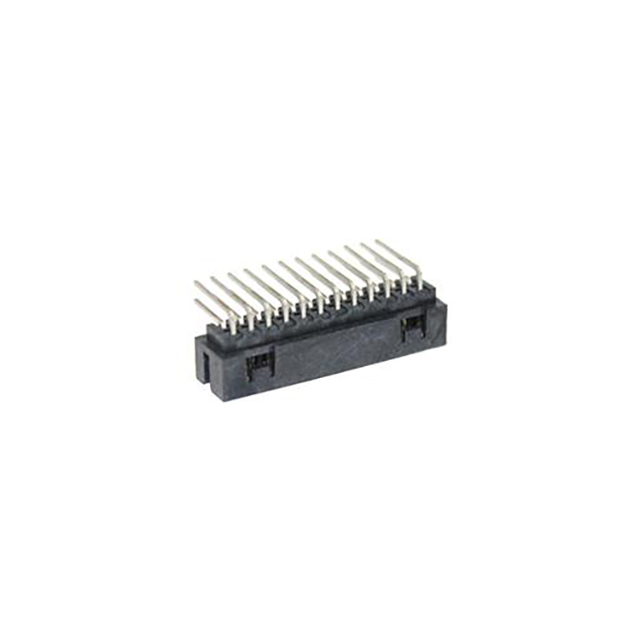

The Molex 151119-3112 is a Milli-Grid PCB header featuring a 2.00mm pitch and dual-row configuration with 12 circuits. Designed for through-hole right-angle mounting, it utilizes an LCP housing capable of supporting high-temperature reflow processes. The contacts are plated with 0.05µm gold to ensure reliable signal transmission. Key mechanical features include a single side slot and a locking ramp window for secure mating. The component operates within a temperature range of -40°C to +105°C and meets glow-wire safety standards.

Headers, Male Pins Feature Summary

• High-temperature resistant LCP housing suitable for reflow soldering
• Glow-wire capable construction for enhanced fire safety
• Secure locking mechanism with ramp window and side slot design

Headers, Male Pins Applications

• High-density board-to-board interconnections
• Wire-to-board assemblies requiring robust thermal stability
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and housing material certification against the official datasheet before integration. Confirm that the right-angle through-hole footprint matches the target PCB layout precisely. Ensure compatibility with high-temperature reflow profiles required by the LCP material properties. Cross-reference the 12-circuit count with system requirements to avoid pin mismatch during assembly.

Headers, Male Pins Selection Notes

Select this component when a compact dual-row header with high thermal resistance is required. The 2.00mm pitch offers a balance between density and spacing. The right-angle orientation facilitates vertical stacking or space-constrained layouts. Consider the glow-wire capability if the application demands strict fire safety compliance. Verify that the through-hole termination method aligns with the manufacturing process capabilities.

Headers, Male Pins Part Context

This part belongs to the Molex Milli-Grid series, designed for high-density electronic applications. The series is characterized by its small pitch and robust mechanical locking features. It serves as a critical interconnect solution in modern electronics where space efficiency and reliability are paramount. The product line supports various industry standards for environmental and electrical performance.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
