1514492

Overview

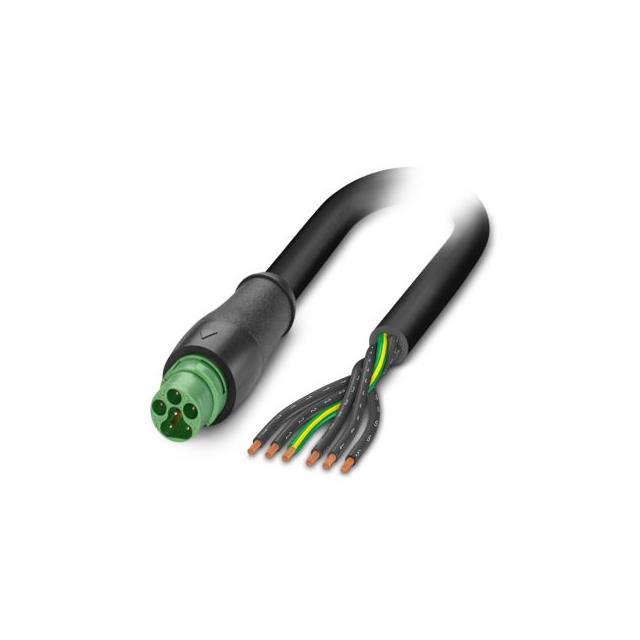

Phoenix Contact part number 1514492 is a SAC-6P-S15MS/1,5-PUR PE power cable. It features a 6-position straight plug with bayonet locking and a free wire end. The cable length is 1.5 meters. Jacket material is black polyurethane (PUR), which is halogen-free. Current ratings are 10 A and 16 A. Voltage ratings are 600 VAC and 63 V. Wire gauge is 14 AWG. IP ratings include IP65 and IP67.

Feature Summary

• Bayonet locking mechanism for secure connection
• Halogen-free polyurethane jacket material
• Robust design with bend and vibration protection

Applications

• Industrial sensor connections
• Actuator cables
• Alternating current applications

Procurement Notes

Verify the specific application requirements against the official datasheet parameters before procurement. Confirm that the 14 AWG wire gauge and 1.5-meter length meet the installation constraints. Ensure compatibility with the S15 connector series environment. Check for any specific certification requirements such as UL listing relevant to the deployment region.

Selection Notes

Select this component when a 6-position circular connector with bayonet locking is required. The PUR jacket offers resistance suitable for harsh industrial environments. Consider the 14 AWG gauge for appropriate current carrying capacity. Verify that the IP65/IP67 rating aligns with the environmental exposure conditions of the intended installation site.

Part Context

This part belongs to the Phoenix Contact SAC series of sensor and actuator cables. The S15 connector size indicates a specific form factor within the circular connector family. These cables are designed for robust performance in demanding industrial settings, providing reliable signal and power transmission between control systems and field devices.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
