1514494

Overview

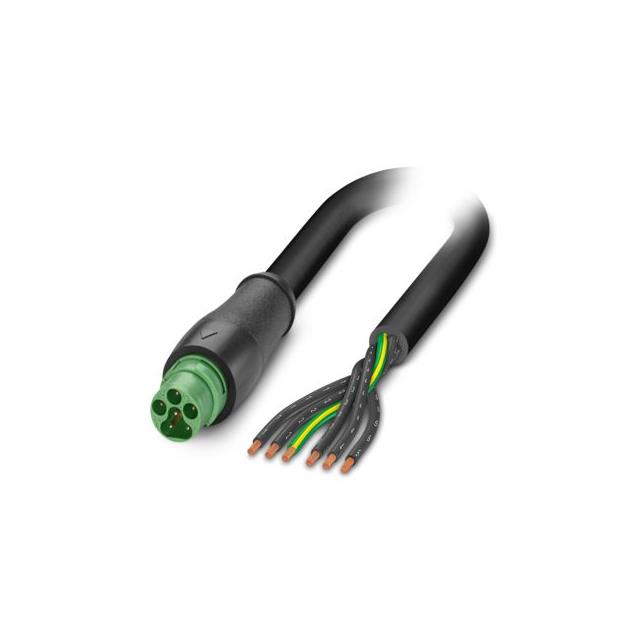

Phoenix Contact part number 1514494 is a SAC-6P-S15MS/3,0-PUR PE power cable assembly. It features a six-position straight plug with size 15 bayonet locking on one end and free cable exit on the other. The cable length is three meters, constructed from halogen-free black PUR material. Rated for up to 16 A at 600 V AC or 10 A at 63 V DC, it utilizes six 2.5 mm² stranded copper conductors without shielding.

Feature Summary

• Six-position configuration designed for reliable power transmission in industrial environments
• Straight plug housing equipped with a size 15 bayonet locking mechanism for secure attachment
• Constructed from halogen-free black polyurethane (PUR) jacketing for environmental durability
• Free cable exit termination allows for flexible integration into custom wiring setups

Applications

• Power supply connections for industrial machinery
• Electrical systems requiring robust signal and power transmission
• Applications utilizing free cable exit configurations for custom routing

Procurement Notes

Verify exact specifications against the official Phoenix Contact datasheet before procurement. Confirm that the bayonet locking mechanism and six-position layout match your system requirements. Ensure the three-meter cable length and PUR material properties are suitable for your specific operational environment and regulatory standards.

Selection Notes

Select this component when a fixed-length, shielded power cable with a bayonet lock is required. The six-position layout supports higher current loads compared to standard sensor cables. Verify compatibility with mating receptacles featuring size 15 bayonet locks. Consider the halogen-free PUR jacket for applications demanding specific fire safety or environmental compliance characteristics.

Part Context

This product belongs to the SAC series of pre-assembled cables from Phoenix Contact. These assemblies are engineered for straightforward installation in automation and control cabinet environments. The design prioritizes mechanical stability and electrical reliability through standardized connector interfaces and durable cabling materials.

Replacement Considerations

No public confirmed substitute part numbers are available.
