1514495

Overview

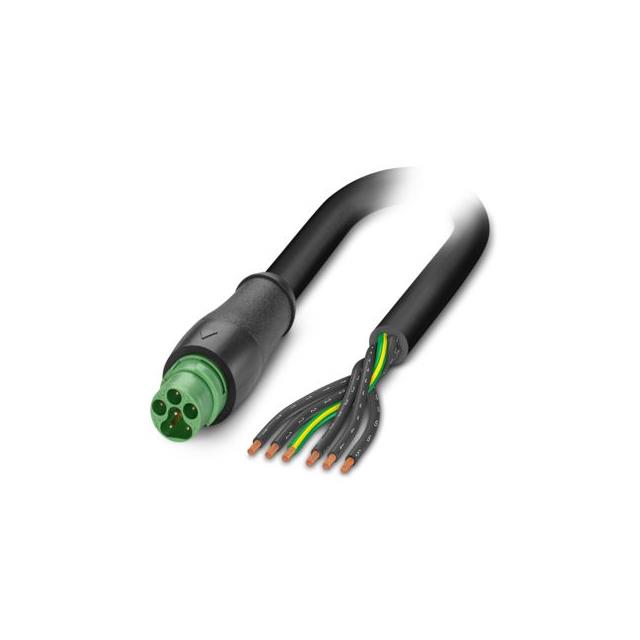

Phoenix Contact part number 1514495 is a sensor and actuator cable from the SAC series. It features a six-position male plug with straight orientation and Size 15 bayonet locking at one end, while the opposite end consists of free cable wires. The cable length is 5 meters (approximately 16.4 feet). Constructed with halogen-free polyurethane (PUR) jacketing in black, it supports alternating current applications up to 600 VAC and 63 VDC. The assembly is rated for currents of 10 A or 16 A depending on specific conditions and utilizes 14 AWG conductors. It offers environmental protection ratings of IP65 and IP67.

Feature Summary

• Six-position configuration with male plug and bayonet locking mechanism
• Halogen-free polyurethane jacket for durability and flexibility
• Free cable end termination for custom wiring integration
• High ingress protection rating suitable for industrial environments

Applications

• Industrial automation control systems
• Sensor and actuator signal transmission
• Power distribution in machinery
• Factory floor equipment connections

Procurement Notes

Verify that the required cable length matches the fixed 5-meter specification. Confirm compatibility with the Size 15 bayonet locking interface on the mating connector. Ensure the application voltage does not exceed 600 VAC or 63 VDC. Check if the PUR jacket material meets your facility's chemical resistance requirements. Validate that the 14 AWG conductor gauge satisfies your current load needs.

Selection Notes

Choose this model when a pre-assembled six-position power cable is needed with robust bayonet locking. The straight plug design suits tight installation spaces where angled connectors are unsuitable. Select this variant if halogen-free materials are mandated for safety compliance. Consider the fixed 5-meter length against your routing requirements before ordering.

Part Context

This component belongs to Phoenix Contact's SAC series of sensor and actuator cables. These assemblies are designed for reliable connectivity in demanding industrial settings. The S15 power circular connector family provides compact solutions for asynchronous and three-phase power applications. This specific part integrates standardized electrical performance with durable mechanical housing.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify pinout compatibility and physical dimensions before considering alternative manufacturers. Ensure any replacement maintains the same bayonet locking mechanism and IP rating.
