1514496

Overview

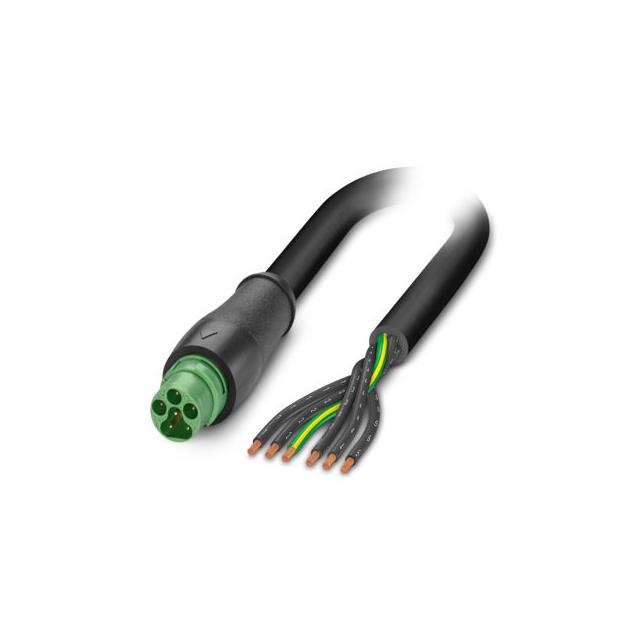

Phoenix Contact part number 1514496 is a sensor cable assembly designed for industrial applications. It features a 6-position straight plug with bayonet locking at one end and a free cable end at the other. The cable length is 10 meters, constructed from halogen-free polyurethane (PUR) in black. Rated for alternating current up to 7.5 kW, it supports voltage ratings of 600 VAC and 63 VDC. Current ratings are specified as 10 A and 16 A. The conductor size is 14 AWG. The connector utilizes Size 15 bayonet locking mechanism.

Feature Summary

• Halogen-free polyurethane jacket material provides durability and resistance.
• Straight plug configuration with Size 15 bayonet locking mechanism ensures secure connection.
• Designed for power transmission in asynchronous and three-phase motor applications.

Applications

• Power connections for asynchronous motors
• Three-phase motor power supply
• Industrial sensor and actuator cabling

Procurement Notes

Verify the specific order code against official Phoenix Contact documentation to ensure compatibility with your system requirements. Confirm that the bayonet locking interface matches existing equipment ports. Check for any updated environmental certifications or material declarations required by your facility's compliance standards before finalizing procurement.

Selection Notes

Select this component when a 10-meter length is required for direct power connection without an intermediate connector on the opposite end. The PUR material is suitable for environments requiring resistance to oils, chemicals, and mechanical stress. Ensure the 6-position pinout aligns with the control system's wiring diagram. Consider the bayonet locking speed advantage over screw-type connectors for frequent maintenance scenarios.

Part Context

This cable belongs to the SAC series of sensor and actuator cables from Phoenix Contact. The S15 designation refers to the circular connector size class, which is commonly used for higher current power applications compared to smaller M12 or M8 connectors. The series emphasizes robust construction for harsh industrial environments.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Direct replacement requires matching the 6-position bayonet locking interface, 10-meter length, and PUR jacket specifications exactly to maintain system integrity.

FAQ

What is the locking mechanism type for the connector?

The connector uses a Size 15 bayonet locking mechanism.

Is the cable shielded?

The product description identifies it as an unshielded power cable.
