1514497

Overview

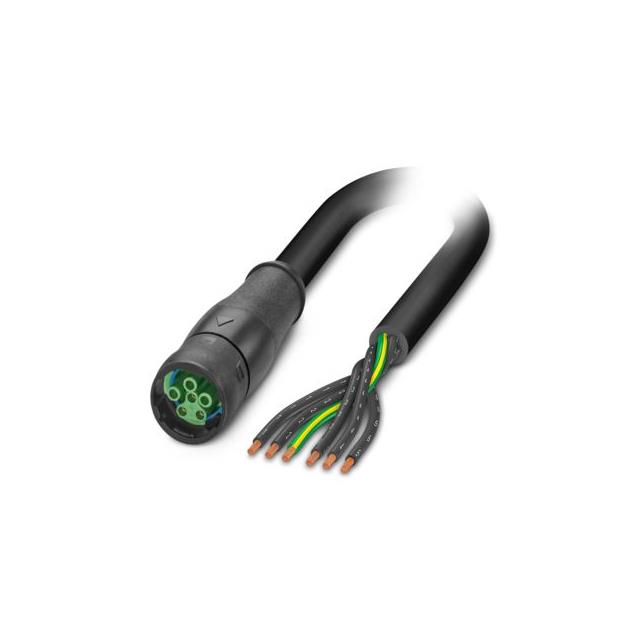

Phoenix Contact part number 1514497 is a SAC series sensor and actuator cable assembly. It features a six-position socket connector at one end with a straight Size 15 bayonet locking mechanism, while the opposite end consists of a free cable termination. The cable length is specified as 1.5 meters. Constructed with polyurethane (PUR) jacketing in black, it supports alternating current applications up to 600 VAC and 63 VDC. Current ratings are listed as 10 A and 16 A depending on configuration. The wire gauge is 14 AWG, and the assembly provides IP65 and IP67 ingress protection ratings.

Feature Summary

• Six-position circular connector interface with bayonet locking for secure attachment
• Polyurethane jacket material providing durability and chemical resistance
• Free cable end design allowing for custom termination or direct wiring
• High ingress protection rating suitable for demanding industrial environments

Applications

• Industrial automation sensor connections
• Actuator signal transmission
• Control cabinet wiring interfaces
• Machinery power distribution

Procurement Notes

Verify the specific voltage and current requirements against the official datasheet before procurement. Confirm that the bayonet locking mechanism is compatible with existing mating connectors. Ensure the PUR jacket material meets environmental standards for the intended installation location. Check for any updated RoHS compliance documentation if required by your facility's regulations.

Selection Notes

Select this model when a pre-assembled six-position connection is required with a bayonet lock. The 1.5-meter length offers a balance between reach and manageability. Consider the 14 AWG gauge for appropriate current carrying capacity. The free-end option allows for flexibility in final connection methods compared to fully terminated assemblies.

Part Context

This component belongs to the Phoenix Contact SAC product line, which specializes in sensor and actuator cables. These assemblies are designed for reliable data and power transmission in industrial settings. The SAC series typically features standardized connectors and robust cabling materials to withstand mechanical stress and environmental factors common in factory automation.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material. Verify compatibility with existing mating devices before attempting substitution.
