1514499

Overview

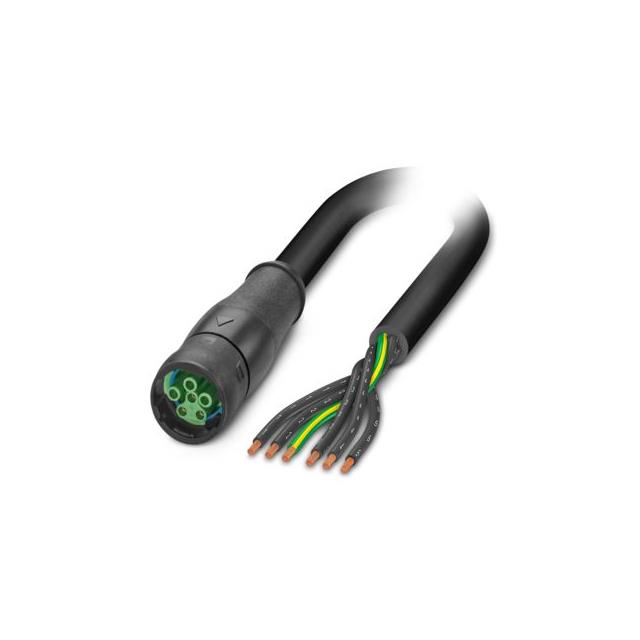

Phoenix Contact part number 1514499 is a SAC-6P-3,0-PUR/S15FS PE power cable assembly. It features a six-position socket connector with Size 15 bayonet locking on one end and a free cable end on the other. The cable length is 3 meters (9.84 feet). Rated for up to 16 A current and 600 V AC voltage, it utilizes 14 AWG wire gauge conductors. The housing is black PUR sheathing, providing IP65 and IP67 protection ratings.

Feature Summary

• Six-position circular connector design with bayonet locking mechanism
• Durable black polyurethane (PUR) cable sheathing
• Free cable end configuration for custom termination
• High ingress protection rating suitable for industrial environments

Applications

• Energy supply for asynchronous motors
• Power connection for three-phase motors up to 7.5kW
• Industrial sensor and actuator cabling
• Machine tool electrical systems

Procurement Notes

Verify the specific order suffix and technical documentation before procurement. Confirm that the bayonet locking interface matches existing equipment requirements. Ensure the 3-meter length and 6-position configuration align with system design specifications. Check for any recent updates to the product datasheet regarding environmental ratings or material composition changes.

Selection Notes

Select this component when a robust, shielded-free power cable with quick-connect bayonet locking is required. The 16 A rating supports moderate power loads. Consider the IP67 rating for harsh environments. Verify compatibility with mating connectors of the same S15 series standard. Evaluate the fixed 3-meter length against installation constraints.

Part Context

This part belongs to the Phoenix Contact SAC series of pre-assembled power cables. These assemblies are designed for direct connection to industrial control systems and motor drives. The S15 connector size provides a compact solution for power distribution in automation applications, balancing durability with space efficiency.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must verify pinout compatibility and mechanical dimensions if considering alternative manufacturers. Direct replacement requires matching the 6-position bayonet locking interface and PUR sheath specifications.
