1514501

Overview

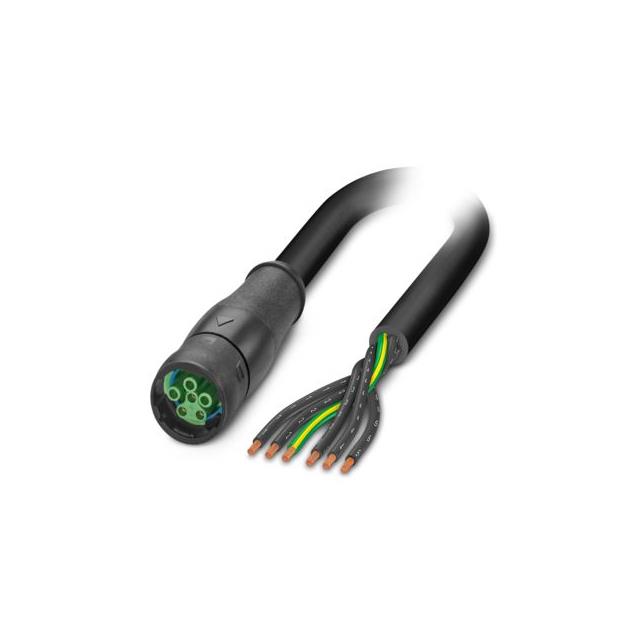

Phoenix Contact part number 1514501 is a 6-position power cable assembly with a total length of 10 meters. It features a free cable end on one side and a straight socket connector with Size 15 bayonet locking on the other. The cable utilizes halogen-free black PUR insulation and contains six copper conductors, each with a cross-section of 2.5 mm² (AWG 14). Rated for up to 16 A at 600 V AC, it has an outer diameter of 10.50 mm and supports a maximum bending cycle count of 5,000,000.

Feature Summary

• Bayonet locking system enables tool-free installation and prevents connection errors
• Halogen-free polyurethane construction ensures environmental safety and durability
• High flexibility design supports extensive mechanical stress cycles

Applications

• Industrial power distribution systems
• Machine tool electrical connections
• Factory automation equipment wiring

Procurement Notes

Verify the specific suffix PE in the model number against official Phoenix Contact documentation to confirm exact compliance requirements. Ensure the bayonet locking mechanism matches the mating receptacle specifications. Confirm that the 10-meter length meets project spatial constraints. Cross-reference the 6-position configuration with system pinout diagrams to avoid mismatched connections during procurement.

Selection Notes

Select this component when a robust, flexible power link is required for industrial environments. The bayonet lock offers faster engagement compared to screw-type connectors. The PUR jacket provides superior resistance to oils and mechanical wear compared to PVC alternatives. Ensure the application voltage does not exceed the 600 V AC rating for safe operation.

Part Context

This cable belongs to the Phoenix Contact SAC series of circular cable assemblies. These products are designed for reliable signal and power transmission in industrial settings. The S15 connector size indicates compatibility with standard industrial circular connector interfaces. The series emphasizes durability and ease of installation through standardized locking mechanisms.

Replacement Considerations

Direct substitutes must match the 6-position configuration, 10-meter length, and bayonet locking type. Verify that any alternative maintains the same 2.5 mm² conductor cross-section and PUR material composition. Ensure the replacement connector housing dimensions align with existing mounting constraints.
