Product Detailed Parameters

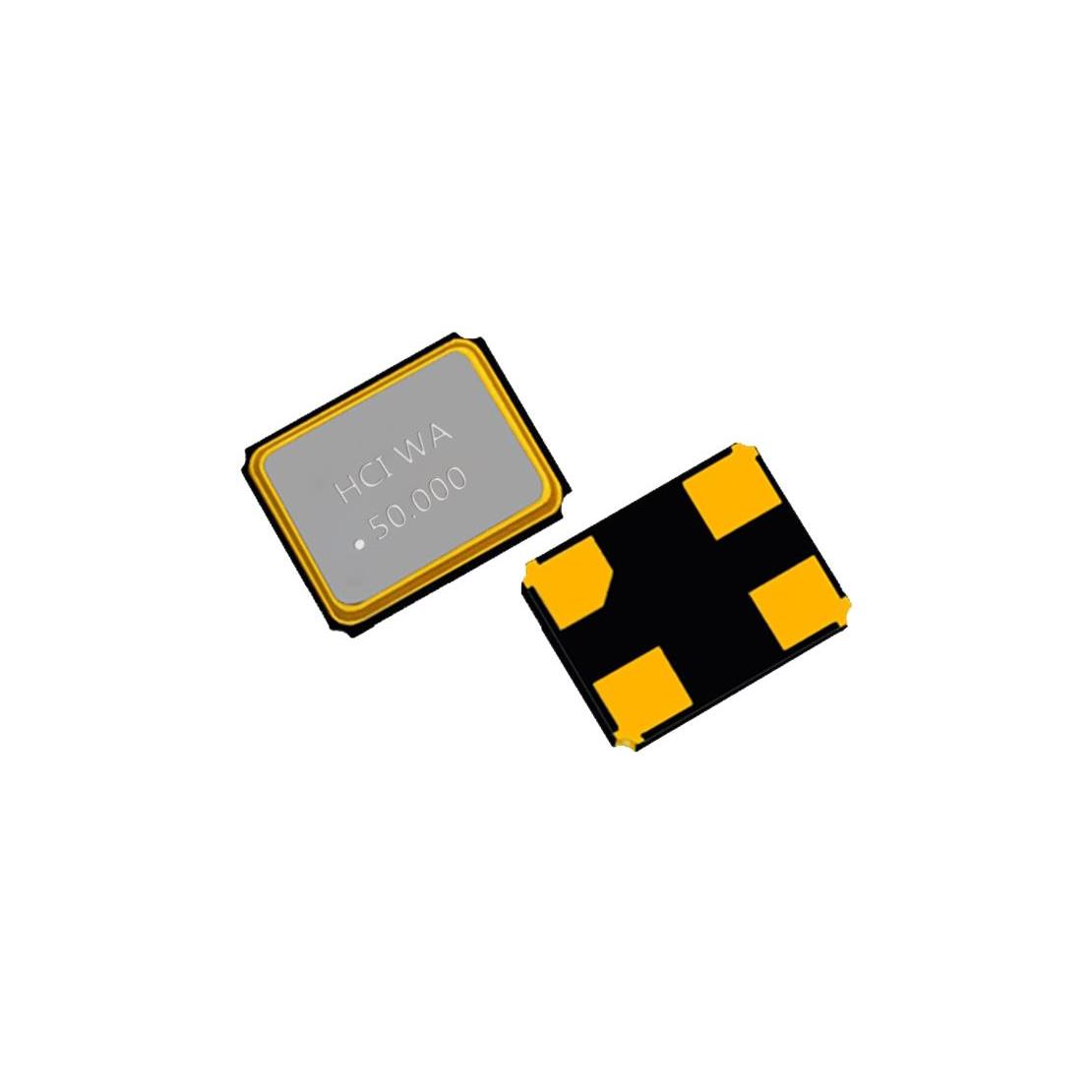

- Description：XTAL OSC XO 12.288MHz 3.3V HCMOS
- Series：1522H
- Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
- Package：Tape & Reel (TR),Strip
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：12.288 MHz
- Function：Enable/Disable
- Output：HCMOS
- Voltage - Supply：3.3V
- Frequency Stability：±25ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：15mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max)：0.039" (1.00mm)
- Supplier Device Package：-
Download product information
Overview
The 1522H-12.288K33DTSK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 12.288 MHz and utilizes HCMOS output logic levels. The device is designed for a supply voltage range of 1.8V to 3.3V, with typical operation centered around 3.3V. It features an enable/disable control function for power management flexibility. The component is housed in a compact 4-SMD, no-lead surface-mount package, suitable for automated assembly processes.
Feature Summary
- HCMOS output signal compatibility
- Enable and disable control functionality
- Wide supply voltage operational range
Applications
- Computing systems
- Communication devices
- Industrial process controllers
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to ensure correct voltage and tolerance specifications. Confirm that the HCMOS output type matches system interface requirements. Check the enable/disable pin configuration against the circuit design. Ensure the 4-SMD package footprint aligns with the PCB layout guidelines provided in the datasheet.
Selection Notes
Select this component when a precise 12.288 MHz clock source is required for digital logic interfaces. Consider the HCMOS output swing for noise immunity in noisy environments. Evaluate the enable/disable feature if dynamic power saving is necessary. Verify the operating temperature range meets the environmental conditions of the target application.
Part Context
This oscillator belongs to the quartz frequency controlling units produced by Suzhou Hangjing Elec&Tech Co., Ltd. The company specializes in research and development of such components for computing and communication sectors. This model represents a standard XO solution within their portfolio of surface-mount oscillators.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other HCMOS oscillators offering identical frequency, voltage, and package dimensions only after verifying electrical parameter compatibility.
