1522H4-25000KWVDTSTK

Overview

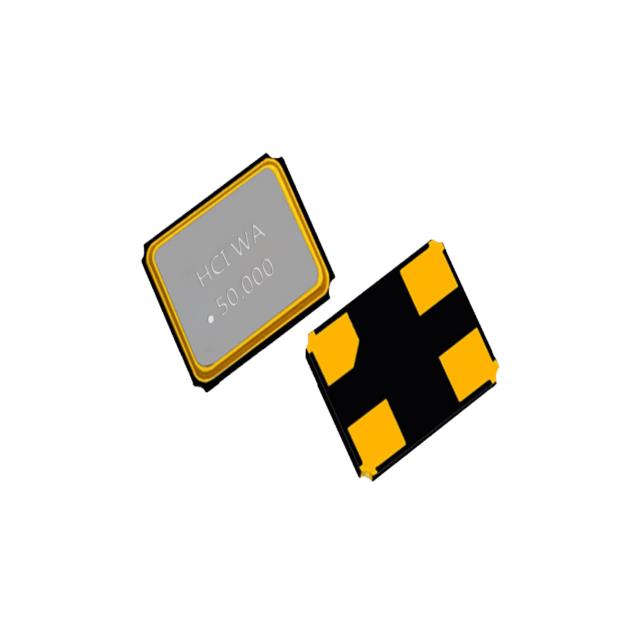

The 1522H4-25000KWVDTSTK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 25 MHz and utilizes HCMOS output signals. The device supports a supply voltage range of 1.8V to 3.3V and includes an enable/disable control function. It is housed in a compact 4-SMD, no lead package suitable for surface mount applications.

Feature Summary

• HCMOS output signal compatibility
• Integrated enable and disable control functionality
• Wide operating voltage support from 1.8V to 3.3V

Applications

• Computing systems
• Communication equipment
• Automotive electronics
• Medical devices
• Industrial control systems

Procurement Notes

Verify the complete part number against official Suzhou Hangjing documentation to ensure correct configuration. Confirm that the specific suffix matches the required voltage and enable pin specifications. Request manufacturer datasheets to validate electrical parameters and environmental ratings before finalizing procurement decisions.

Selection Notes

Select this component when a 25 MHz clock source with HCMOS interface is required. Ensure the design accommodates the 1.8V to 3.3V supply range. Verify that the 4-SMD footprint fits the PCB layout constraints. Consider the enable/disable feature if power management or clock gating is necessary for the application.

Part Context

This oscillator belongs to the standard XO series produced by Suzhou Hangjing. The company specializes in quartz frequency control units, including crystals, oscillators, and filters. The 1522H4 series represents their surface-mount solutions designed for reliability in various electronic sectors.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided data. Consult the manufacturer directly for cross-reference information or equivalent components within the same product family.
