1526859

Overview

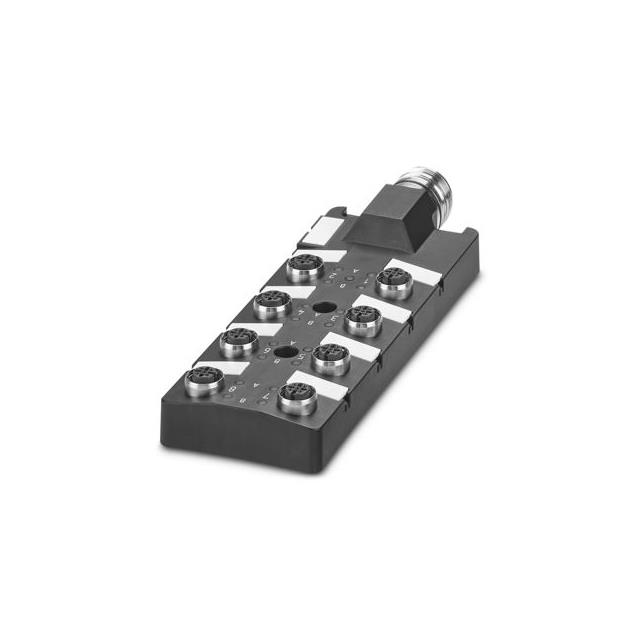

Phoenix Contact part number 1526859 is a sensor interface junction block designed for industrial automation. It features an M12 female connector with A-coding and five positions. The unit includes eight slots arranged in a double-channel configuration. Status display functionality is integrated for PNP applications. The main cable connects via an M23 male plug at a 180-degree angle. The housing is dust-tight and waterproof.

Feature Summary

• Integrates status display for operational monitoring
• Provides dust-tight and waterproof protection
• Supports PNP signal processing

Applications

• Sensor interface connections
• Actuator box installations
• Industrial distribution boxes

Procurement Notes

Verify the specific model designation SACB-8/16-L-M23 180 HD against technical requirements. Confirm that the M12 A-coded socket matches the mating connector specifications. Ensure the PNP status display aligns with the control system logic. Check environmental ratings for outdoor or harsh conditions.

Selection Notes

Select this component when a compact junction solution with built-in diagnostics is required. The M23 main connection supports higher current loads compared to standard M12 inputs. The 180-degree orientation facilitates cable routing in confined spaces. Verify compatibility with existing M12 sensor networks.

Part Context

This device belongs to Phoenix Contact's series of sensor/actuator cables and junction blocks. It serves as a central point for connecting multiple sensors to a controller. The design emphasizes durability and ease of installation in factory environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Phoenix Contact catalogs for compatible alternatives.
