1532126

Overview

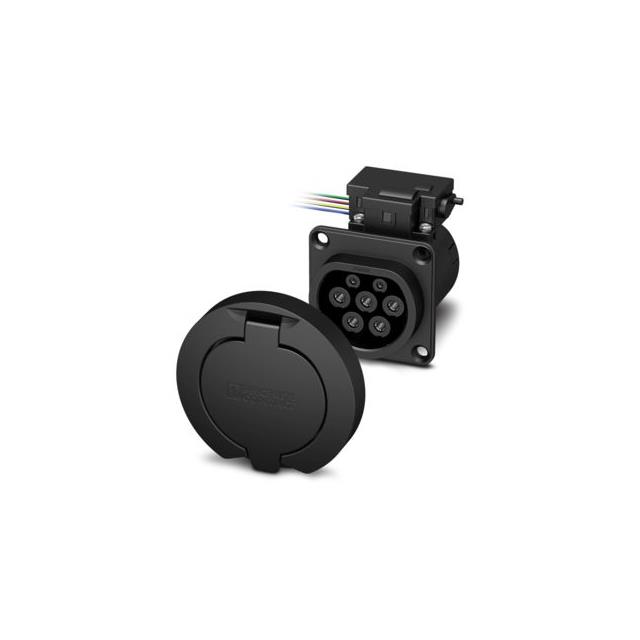

The Phoenix Contact 1532126 is a CHARX connect modular Gen 2 Basic EV charging socket designed for AC charging of electric vehicles. It features a square design with a circular protective cover and supports Type 2 connectors. Rated at 32 A and 480 V AC, it utilizes an electronic lock operating at 12 V. The unit includes three poles, M5 thread mounting, and a black housing. It is intended for rear panel installation in EVSE kits.

Feature Summary

• Compatible with Type 2 charging plugs for AC vehicle charging
• Integrated electronic locking mechanism for secure connection
• Includes circular protective cover to shield contacts when not in use

Applications

• Electric Vehicle Supply Equipment (EVSE) assembly
• Public AC charging stations
• Commercial fleet charging infrastructure

Procurement Notes

Verify the specific ordering code against the required configuration, as CHARX modular systems often involve distinct variants for cable sets or accessories. Confirm that the Gen 2 Basic setting aligns with your project's compatibility requirements, particularly regarding the exclusion of Gen 3 cable kits. Ensure the 12 V electronic lock specification matches your control system voltage.

Selection Notes

Select this component for applications requiring a robust, modular AC charging interface compliant with IEC 62196-2 standards. It is suitable for installations needing a square form factor with integrated protection. Consider the 32 A current rating and 480 V AC voltage limits to ensure they meet the power delivery requirements of the target electric vehicles.

Part Context

This part belongs to the CHARX connect modular product series by Phoenix Contact, specifically the Gen 2 Basic line. It is engineered to integrate seamlessly with other components in the CHARX ecosystem, providing a standardized solution for modern electric vehicle charging infrastructure. The series emphasizes modularity and compliance with international charging standards.

Replacement Considerations

Ensure any substitute maintains compatibility with Type 2 plugs and the CHARX Gen 2 modular system. Verify that replacement units support the same 32 A / 480 V AC ratings and 12 V electronic lock operation. Confirm that the replacement does not inadvertently introduce incompatibility with existing Gen 3 cable assemblies if such integration is planned.
