1532D-10.000J33DTSTK

Overview

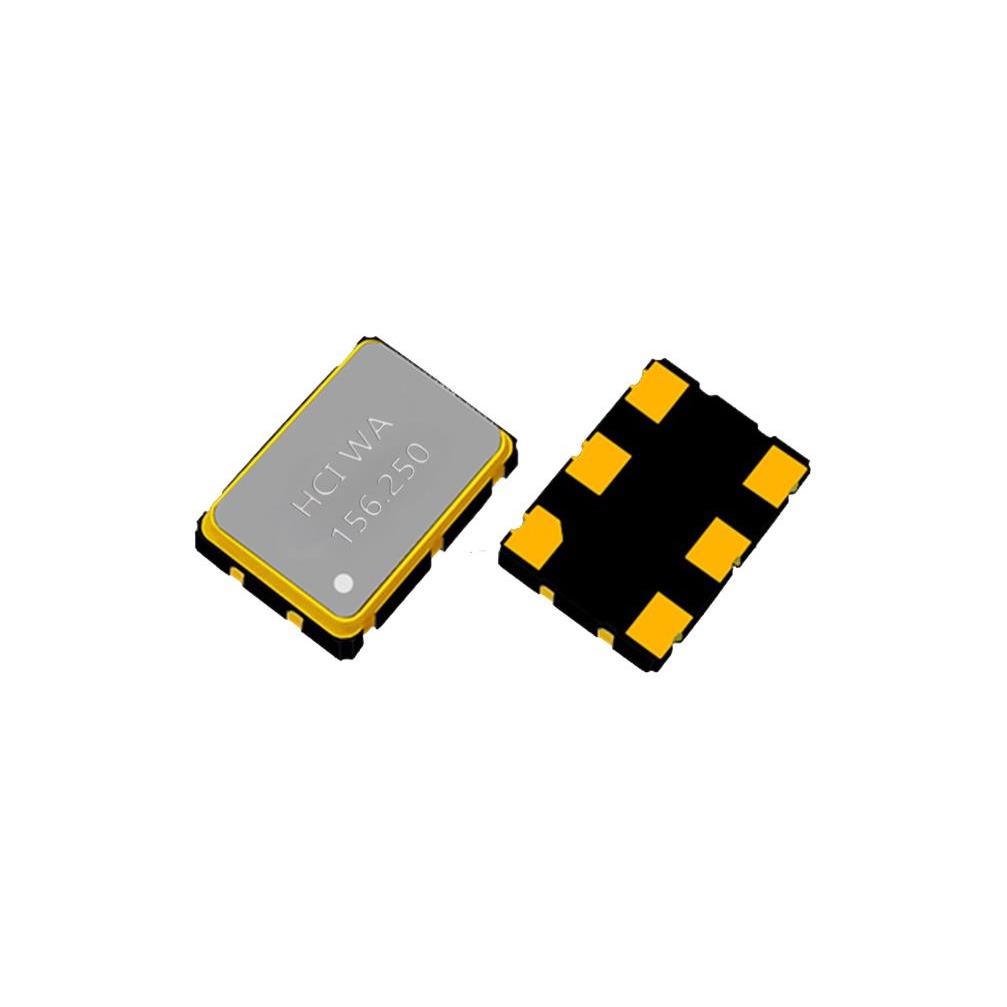

The 1532D-10.000J33DTSTK is a standard LVDS crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co.,Ltd. It operates at a frequency of 10 MHz with a supply voltage of 3.3V and features an enable/disable control function. The device utilizes a 6-SMD, No Lead package with dimensions of 3225 (3.2mm x 2.5mm). It offers a常温频差 (frequency tolerance) of ±10ppm and a total frequency stability of ±20ppm over the operating temperature range of -40°C to +85°C.

Feature Summary

• LVDS output waveform for high-speed signal integrity
• Integrated enable/disable control functionality
• Compact 3225 surface mount package design

Applications

• Computing systems
• Communication equipment
• Industrial devices

Procurement Notes

Verify the specific ordering suffix J33DTSTK against official manufacturer documentation to confirm pinout, enable logic, and package variant accuracy. Ensure the selected component matches the required LVDS output type and 3.3V supply specification for your circuit design. Cross-reference the frequency stability requirements with the ±20ppm specification provided in the datasheet.

Selection Notes

Select this component when LVDS signaling is required for noise immunity in compact designs. The 3225 package size suits space-constrained PCB layouts. Verify that the ±20ppm frequency stability meets the system timing requirements across the full industrial temperature range of -40°C to +85°C.

Part Context

This oscillator belongs to the standard XO series from Suzhou Hangjing, designed for applications requiring precise timing in small form factors. The brand specializes in quartz frequency control units, providing solutions for computing, communication, and industrial sectors with a focus on reliability and low failure rates.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
