1532D200000K18DTK

Overview

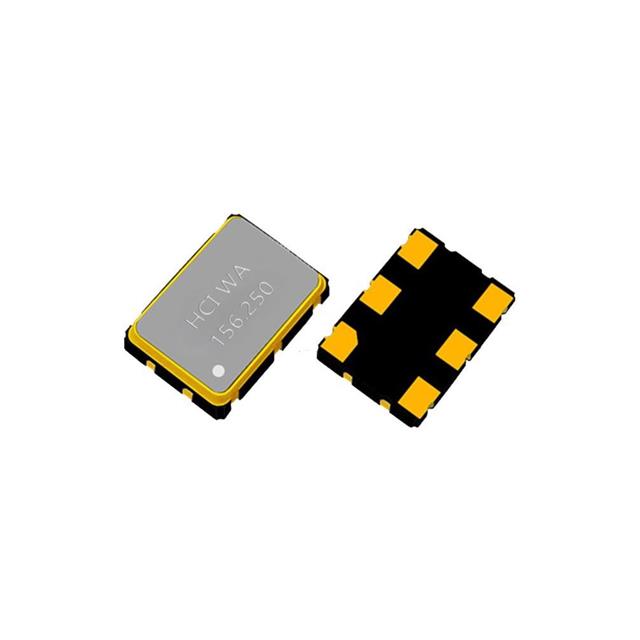

The 1532D200000K18DTK is a surface-mount crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 200 MHz with a stability of ±15 ppm. The device utilizes LVDS output signaling and requires a 1.8V supply voltage. It features an enable/disable function for power management. The component is housed in a 6-SMD package with a maximum seated height. It supports an operating temperature range from -40°C to +85°C, ensuring reliability in demanding environments.

Feature Summary

• LVDS output interface for high-speed signal integrity
• Enable/Disable control function for power optimization
• Surface mount construction for automated assembly

Applications

• High-speed data handling systems
• FPGA timing reference sources
• Communication equipment requiring precise clocking

Procurement Notes

Verify the manufacturer part number against official Suzhou Hangjing documentation to confirm specifications. Ensure the received components match the specified 6-SMD package and LVDS output type. Check for RoHS compliance markings as indicated in available product data. Confirm the operating temperature range meets application requirements before integration into final designs.

Selection Notes

Select this component when a 200 MHz clock source with LVDS outputs is required. Consider the 1.8V supply constraint and ±15 ppm stability for system design. Evaluate the 6-SMD footprint for PCB layout compatibility. Verify that the -40°C to +85°C range aligns with environmental conditions. Compare enable/disable functionality needs against alternative oscillator types.

Part Context

This model belongs to the quartz frequency controlling units produced by Suzhou Hangjing Elec&Tech Co., Ltd. The company specializes in research and development of such components. The 1532D series represents their surface-mount oscillator offerings. This specific part integrates LVDS technology for modern digital interfaces.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Cross-referencing requires matching LVDS output, 200 MHz frequency, 1.8V supply, and 6-SMD package dimensions. Consult official distributor databases for equivalent components if direct replacement is necessary.
