1532H-12.000K18DTSK

Overview

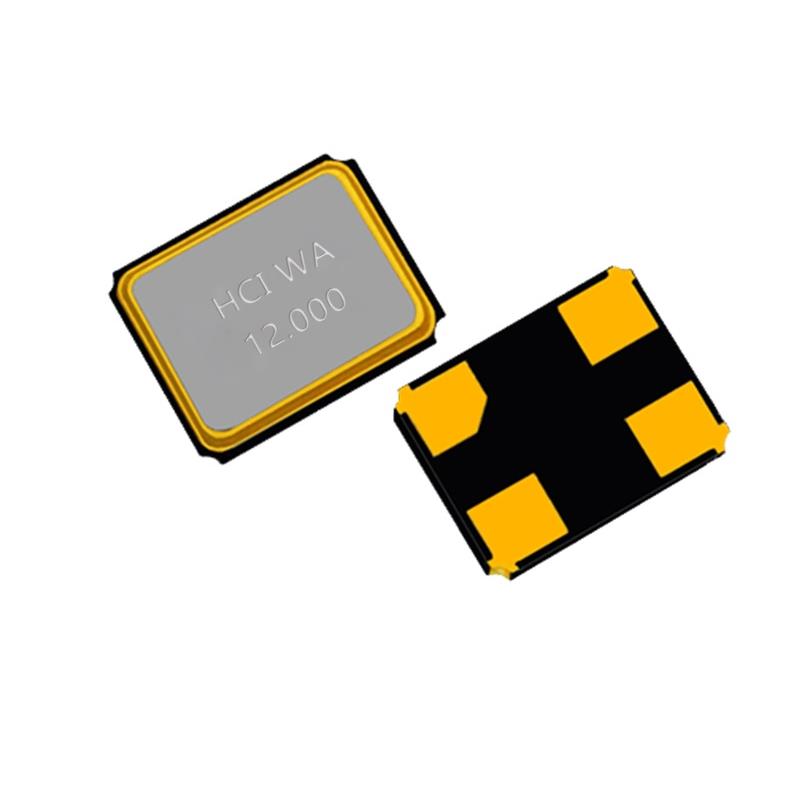

The 1532H-12.000K18DTSK is a standard HCMOS crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 12 MHz with a supply voltage of 1.8V and features an enable/disable control function. The unit utilizes a 4-SMD, No Lead package with dimensions of 3225. It maintains a frequency stability of ±25ppm over the operating temperature range.

Feature Summary

• Features an enable/disable control pin for power management flexibility
• Generates precise clock signals using HCMOS output logic
• Designed for compact surface-mount integration in digital circuits

Applications

• Microcontroller clock sources
• Digital circuit timing applications
• Embedded system synchronization

Procurement Notes

Verify the specific ordering suffix K18DTSK to confirm the 1.8V supply voltage and enable/disable functionality. Ensure the procurement channel provides original manufacturer documentation from Suzhou Hangjing Elec&Tech Co., Ltd. to guarantee component authenticity and correct electrical specifications.

Selection Notes

Select this component when a low-voltage 1.8V operation is required alongside an enable/disable feature. The 12MHz frequency suits general digital timing needs. Verify that the 3225 package size fits the PCB layout constraints and that the ±25ppm stability meets the system's timing accuracy requirements.

Part Context

This part belongs to the standard HCMOS oscillator series produced by Suzhou Hangjing Elec&Tech Co., Ltd. The company specializes in quartz frequency controlling units, including oscillators and crystals. This specific model represents a surface-mount solution designed for modern electronic devices requiring precise timing signals.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Cross-referencing requires matching the 12MHz frequency, 1.8V supply, HCMOS output, enable/disable feature, and 3225 package dimensions.
