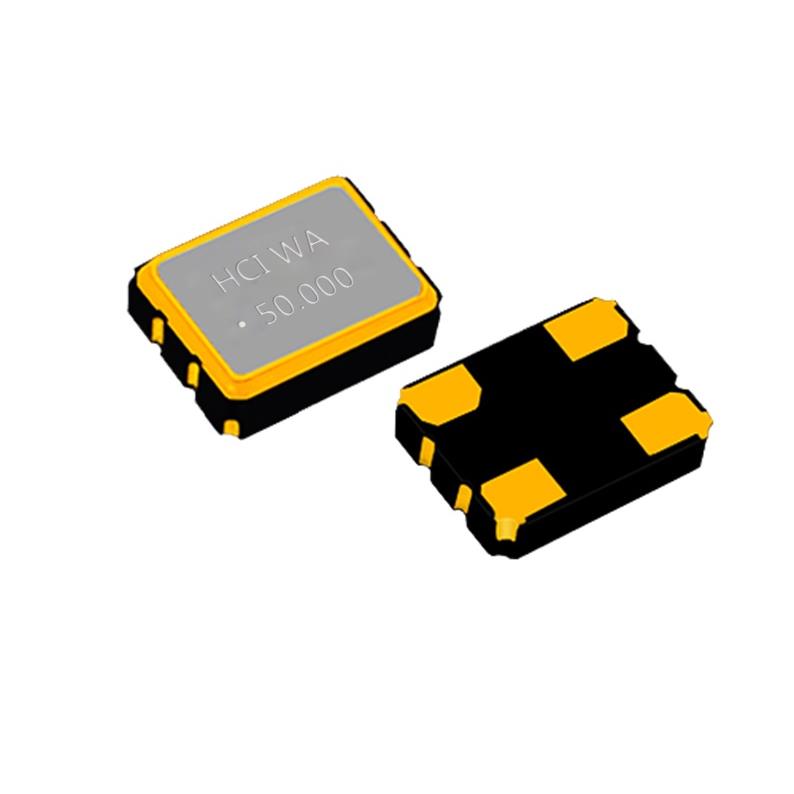

1532H-133.000K18DTSK

$0.60

Description：OSC,3225,HCMOS,133MHz,25ppm,1.8V
Series：1532H
Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
Package：Tape & Reel (TR)

SKU:c9537e909fee Category: Oscillators Brand: Suzhou Hangjing Elec&Tech Co.,Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：OSC,3225,HCMOS,133MHz,25ppm,1.8V
Series：1532H
Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：133 MHz
Function：Enable/Disable
Output：HCMOS
Voltage - Supply：1.8V
Frequency Stability：±25ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：-
Ratings：-
Mounting Type：Surface Mount
Package / Case：SMD 3.2mm x 2.5mm
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)：0.039" (1.00mm)

Download product information

1532H-133.000K18DTSK

Overview

The 1532H-133.000K18DTSK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 133 MHz and utilizes HCMOS output levels. The device is designed for surface-mount applications, featuring a 4-SMD, No Lead package configuration. It functions with a supply voltage of 1.8V and includes an enable/disable control feature for power management.

Feature Summary

HCMOS output signal compatibility
Surface-mount 4-SMD no lead package design
Integrated enable/disable functionality

Applications

Computing systems
Communication equipment
Automotive electronics

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm electrical characteristics and package dimensions. Ensure that the 1.8V supply requirement and HCMOS interface are compatible with the target circuit design before procurement.

Selection Notes

Select this component when a 133 MHz clock source with HCMOS output is required in a compact surface-mount form factor. Consider the 1.8V operating voltage and enable/disable pin availability for system power management strategies.

Part Context

Suzhou Hangjing Elec&Tech Co., Ltd specializes in quartz frequency controlling units, including oscillators. This model belongs to their series of quartz crystal and oscillator products designed for computing, communication, and industrial applications.
