1532H-156.250J33DTK

Overview

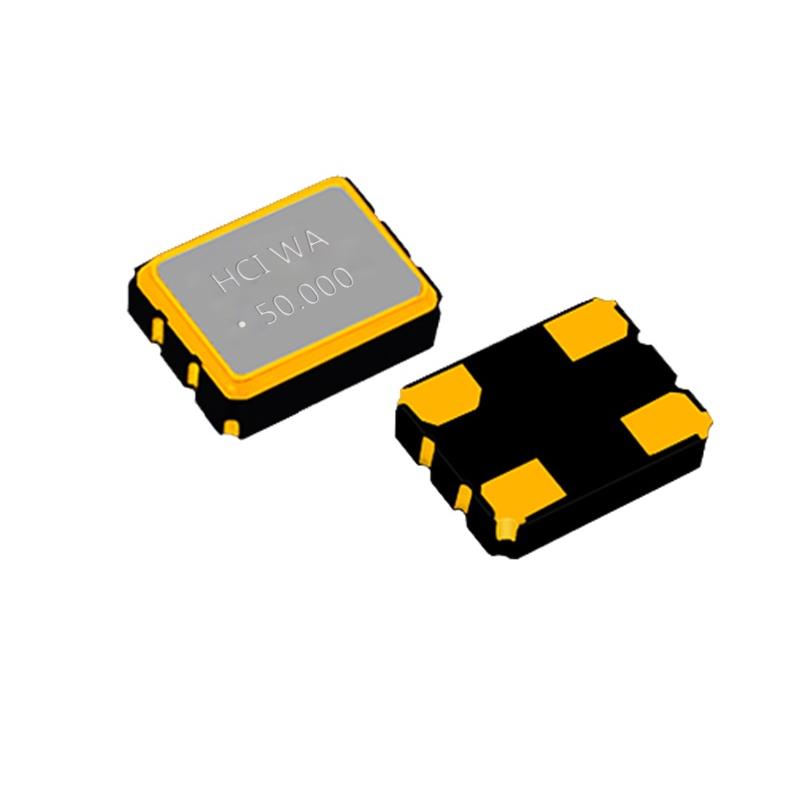

The 1532H-156.250J33DTK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 156.25 MHz and utilizes an HCMOS output logic level. The device is powered by a 3.3V supply voltage and features Enable/Disable control functionality. It is housed in a compact 3225 surface-mount package with four solder pads. The unit employs a crystal base resonator and supports operation within a temperature range of -40°C to +85°C.

Feature Summary

• HCMOS output interface for digital signal compatibility
• Enable/Disable control capability for power management
• Compact 3225 SMD package design for space-constrained applications

Applications

• Computing systems requiring precise clock signals
• Communication equipment infrastructure
• Industrial devices needing stable timing references

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct voltage, load capacitance, and tolerance specifications. Confirm that the HCMOS logic level and 3.3V supply requirements align with the target circuit design before procurement. Ensure the 3225 package dimensions match the PCB footprint constraints. Cross-reference the part number with the latest datasheet to validate active status and availability.

Selection Notes

Select this component when a 156.25 MHz clock source is required for digital interfaces utilizing HCMOS logic levels. The 3.3V operating voltage must be compatible with the system power rails. Consider the 3225 package size for board layout limitations. Verify that the industrial temperature range meets the environmental operating conditions of the final application.

Part Context

This oscillator belongs to the 1532H series from Suzhou Hangjing Elec&Tech Co., Ltd., which specializes in quartz frequency controlling units. The series provides solutions for computing, communication, and industrial sectors. The company focuses on high-quality products with low failure rates and robust supply chain systems for piezoelectric crystal applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult the manufacturer directly for equivalent alternatives or cross-reference options based on identical electrical parameters and package dimensions.
