1532H-27.000K18DTSNK

Overview

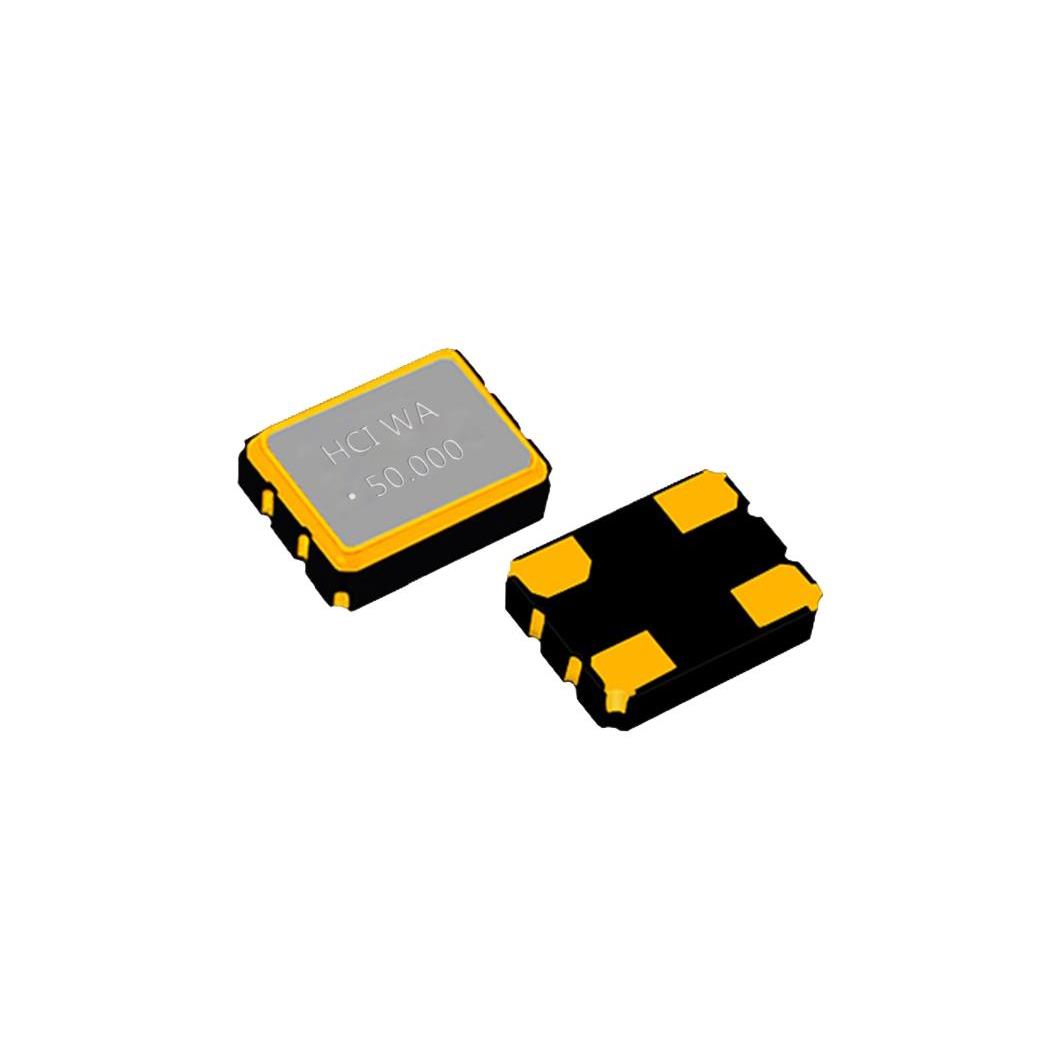

The 1532H-27.000K18DTSNK is a standard clock oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 27 MHz and utilizes HCMOS output logic levels. The device functions with a supply voltage of 1.8V and includes an enable/disable control feature for power management. It is housed in a compact 4-SMD, no lead surface-mount package, designed for integration into space-constrained electronic circuits requiring precise timing signals.

Feature Summary

• HCMOS output interface for digital signal compatibility
• Integrated enable/disable functionality for power optimization
• Surface-mount construction for automated assembly

Applications

• Smartphone timing circuits
• Tablet system clocks
• In-vehicle electronic systems
• GPS module synchronization

Procurement Notes

Verify the manufacturer designation matches Suzhou Hangjing Elec&Tech Co., Ltd. Confirm the part number suffix aligns with the specified 1.8V HCMOS variant. Ensure the physical package matches the 4-SMD no-lead form factor. Request documentation confirming the enable/disable pin configuration to ensure circuit compatibility.

Selection Notes

Select this component when a 27 MHz reference is required for low-voltage digital applications. The HCMOS output ensures direct interfacing with standard logic families without additional level shifting. The enable feature allows for dynamic power control in battery-operated devices. Verify that the operating temperature range meets the specific environmental requirements of the target application.

Part Context

This oscillator belongs to the standard clock oscillator family produced by Suzhou Hangjing Elec&Tech Co., Ltd. The company specializes in quartz frequency control components, including crystals and oscillators. This specific model represents a solution for consumer electronics and communication devices requiring stable frequency generation in small form factors.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing requires matching frequency, voltage, output type, and package dimensions. Consult official distributor databases for equivalent components from other manufacturers if supply constraints exist.
