1532P-100.000K33DT-CNK

Overview

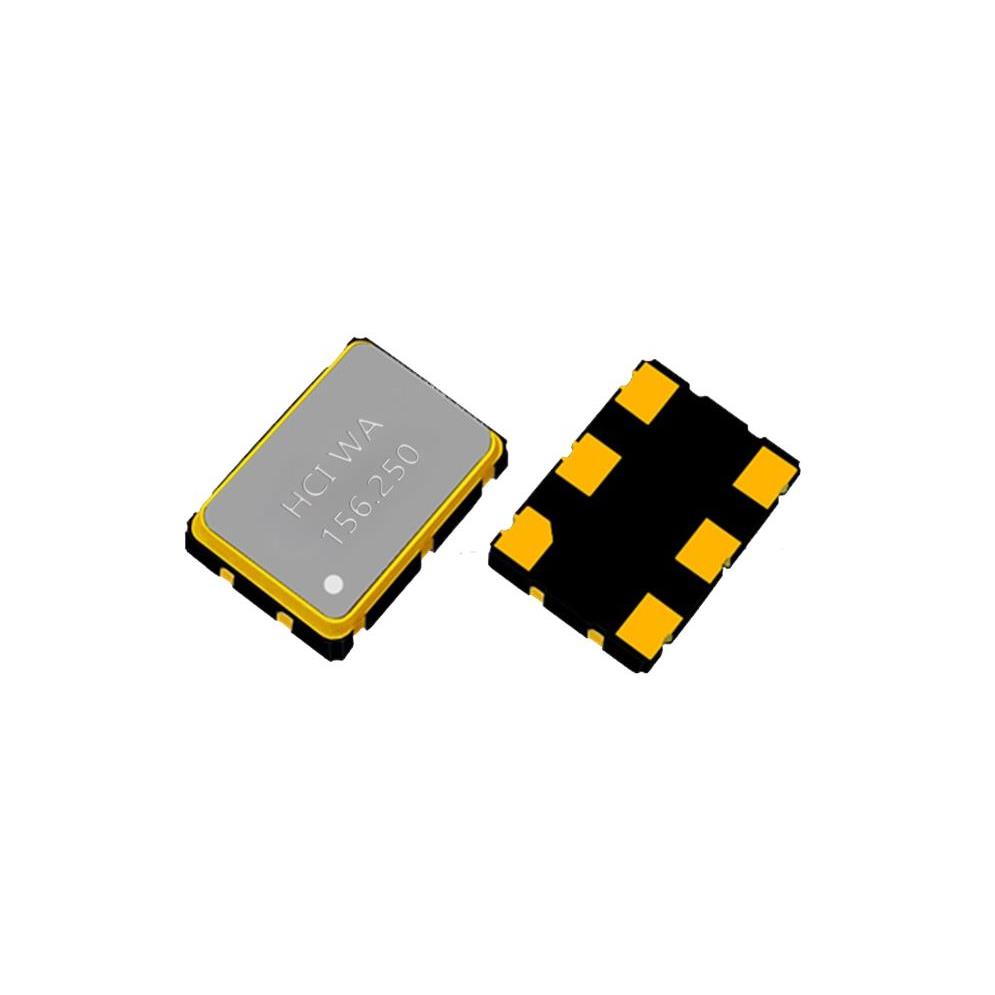

The 1532P-100.000K33DT-CNK is a 100 MHz crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It utilizes LVPECL output logic and operates at a supply voltage of 3.3V. The device features an enable/disable control function and is housed in a compact 6-SMD, no lead surface-mount package. This component is designed for applications requiring precise frequency generation with standard form factor compatibility.

Feature Summary

• Supports LVPECL output logic for high-speed digital interfaces
• Includes enable and disable control functionality for power management
• Designed for surface-mount assembly in space-constrained environments

Applications

• High-speed data communication systems
• Network infrastructure equipment
• Digital signal processing circuits

Procurement Notes

Verify the complete part number including suffixes to ensure correct output logic and packaging specifications. Confirm that the supplier provides official documentation from Suzhou Hangjing Elec&Tech Co., Ltd. to guarantee authenticity and compliance with specified electrical parameters before finalizing procurement orders.

Selection Notes

Select this component when LVPECL interface compatibility is required alongside a 100 MHz reference frequency. Ensure the design accommodates the 3.3V supply requirement and the specific thermal characteristics of the 6-SMD no-lead package. Validate that the application environment supports the standard operating temperature range defined for this series.

Part Context

This model belongs to the 1532P series of quartz frequency control units produced by Suzhou Hangjing Elec&Tech Co., Ltd. Founded in 2014, the manufacturer specializes in research and development of quartz components. The 1532P series typically offers tight stability options suitable for demanding electronic applications requiring reliable timing signals.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
