1532P-125.000K33DTSTK

Overview

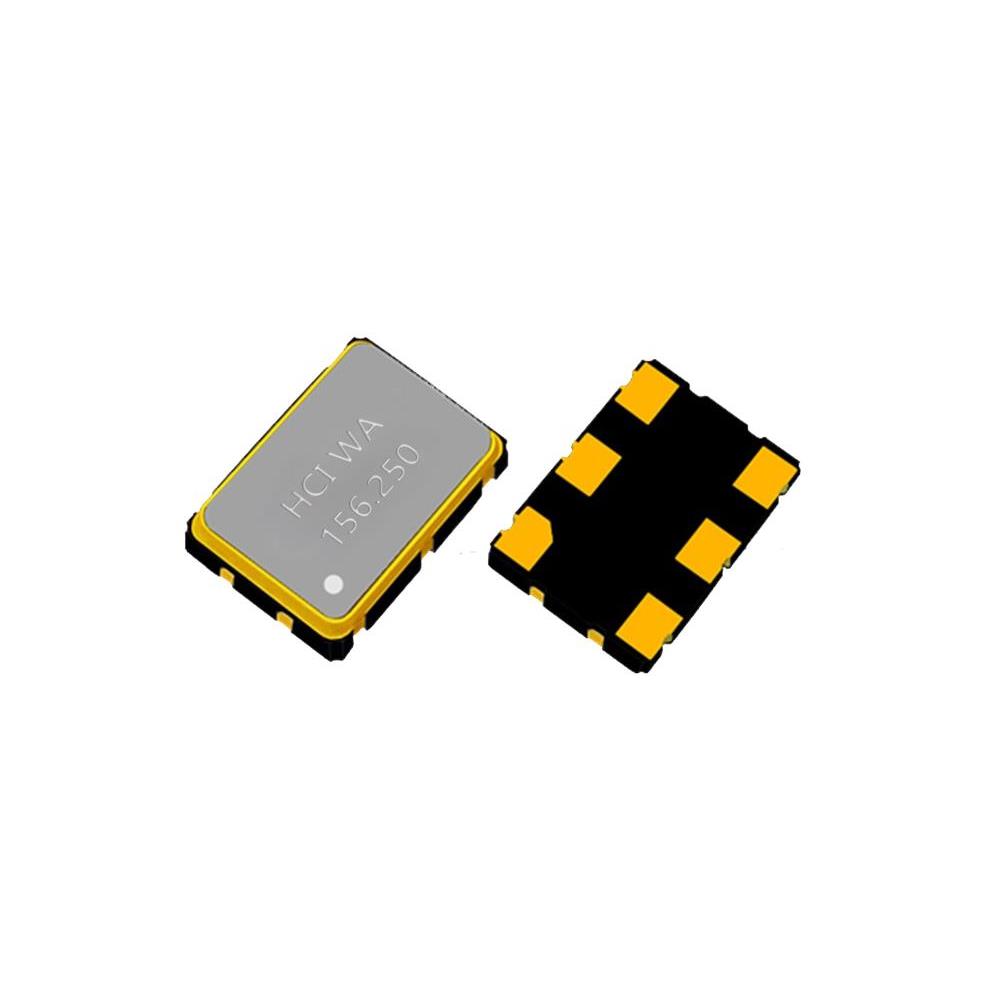

The 1532P-125.000K33DTSTK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 125 MHz and utilizes LVPECL output logic levels. The device functions with a 3.3V supply voltage and includes an enable/disable control feature for power management. It is housed in a compact 6-SMD, no lead package, designed for surface-mount assembly on printed circuit boards.

Feature Summary

• LVPECL output interface
• Enable/Disable control function
• Surface-mount SMD package

Applications

• High-speed digital signal processing systems
• Telecommunications equipment clocking
• Data acquisition systems requiring precise timing

Procurement Notes

Verify the manufacturer part number against official Suzhou Hangjing documentation to confirm specifications. Ensure the LVPECL output compatibility matches the receiving circuit requirements. Check the operating temperature range and stability ratings against application needs before procurement.

Selection Notes

Select this component when a 125 MHz clock source with LVPECL outputs is required. Consider the 3.3V supply voltage and enable pin functionality for system power management. Evaluate the 6-SMD package size for PCB layout constraints and thermal performance requirements.

Part Context

This oscillator belongs to the standard XO series from Suzhou Hangjing, focusing on quartz frequency control units. The company specializes in research and production of such components since 2014. This specific model represents a high-frequency solution within their portfolio of reliable oscillators.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
