1532P148500K33DTK

Overview

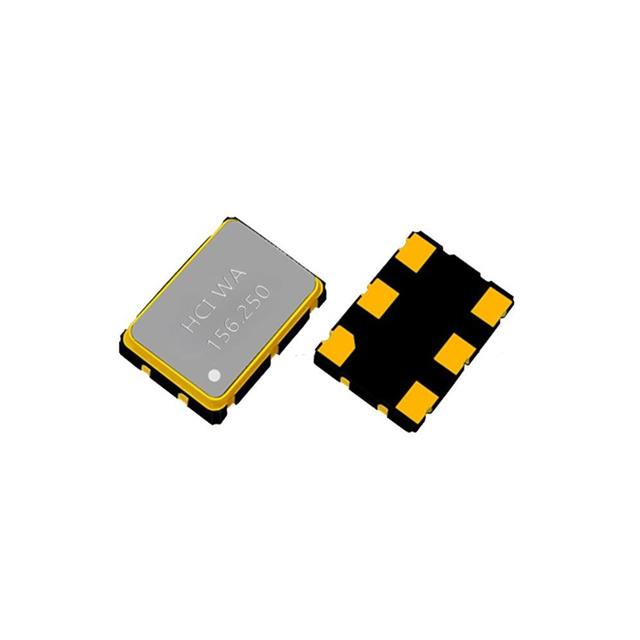

The 1532P148500K33DTK is a quartz crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co.,Ltd. It operates at a frequency of 148.5 MHz and utilizes the LVPECL output format. The device is housed in a 6-SMD, No Lead package with dimensions of 7.0mm x 5.0mm. It functions within a supply voltage range of 2.5V to 3.3V and supports an Enable/Disable control feature. The operational temperature range extends from -40°C to +85°C, ensuring reliability in demanding environments.

Feature Summary

• Provides stable high-frequency signal generation using LVPECL technology for high-speed digital applications.
• Features an integrated enable/disable function allowing for power management and system control flexibility.
• Designed with a compact surface-mount package suitable for space-constrained electronic assemblies.

Applications

• High-power motor control cabinets requiring stable switching characteristics
• Industrial devices needing precise timing signals
• Medical devices utilizing quartz frequency control units

Procurement Notes

Verify that the component matches the existing system specifications regarding frequency, output format, and package type. Ensure the supplier confirms the product is genuine and factory-sealed with a recent date code. Cross-reference the part number with official manufacturer documentation to confirm compatibility with the intended application environment.

Selection Notes

Select this oscillator when LVPECL outputs are required for high-speed data transmission or clock distribution. Consider the 6-SMD package size for board layout constraints. Verify that the operating temperature range meets the environmental requirements of the target application, specifically noting the -40°C to +85°C specification.

Part Context

Suzhou Hangjing Elec&Tech Co.,Ltd specializes in quartz frequency controlling units, including oscillators, TCXOs, and VCXOs. The company focuses on research, development, and production of these components for computing, communication, and industrial sectors. This part belongs to their standard oscillator lineup designed for reliable performance.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult the manufacturer directly for potential alternatives or cross-references if this specific model is unavailable.
