Product Detailed Parameters
- Description：OSC,3225,LVPECL,8 PIN, 2000MHz,3
- Series：1532P8
- Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
- Package：Tape & Reel (TR)
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：2000 MHz
- Function：Enable/Disable
- Output：LVPECL
- Voltage - Supply：3.3V
- Frequency Stability：±30ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：-
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：-
- Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max)：0.039" (1.00mm)
Download product information
Overview

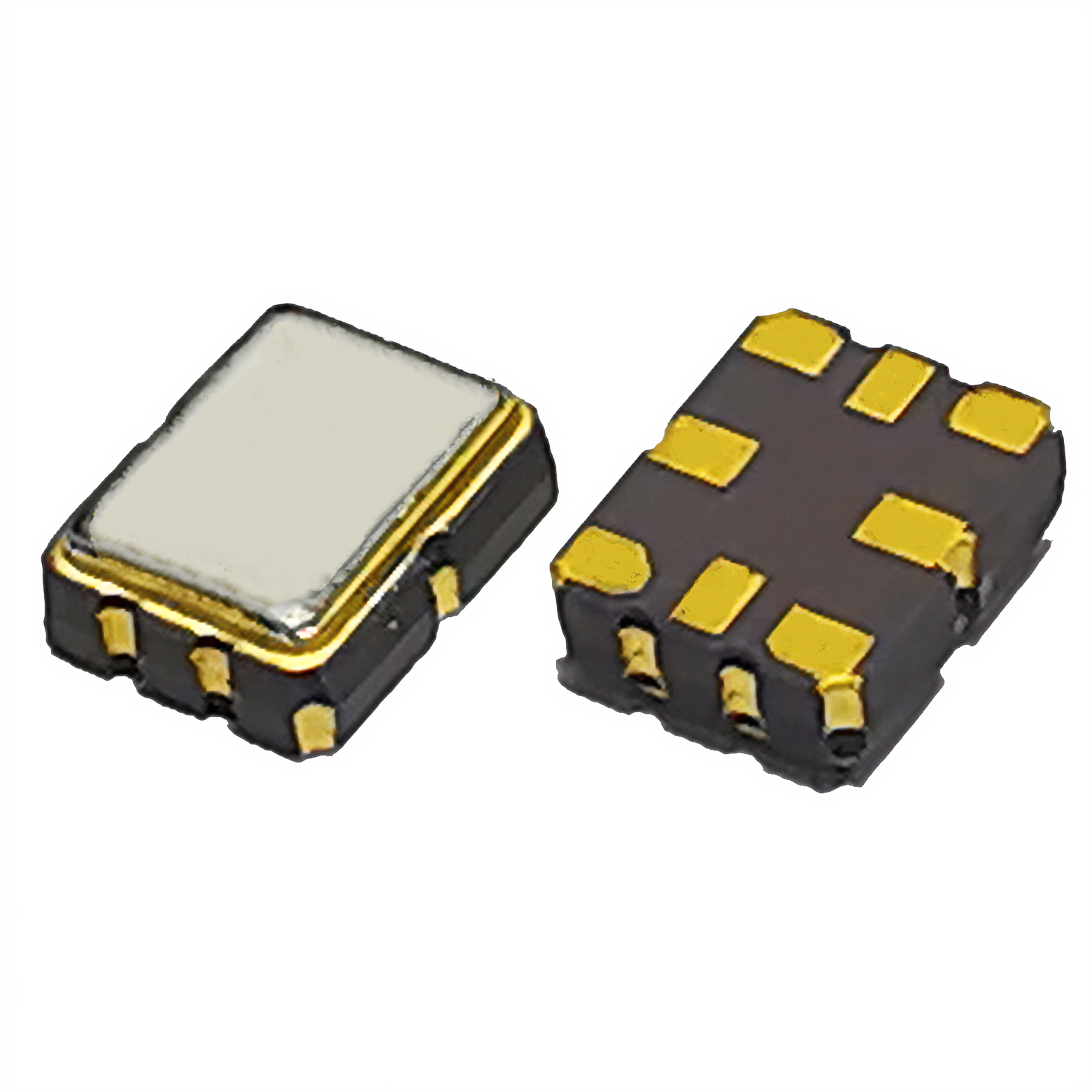

The 1532P8-2000.000J33DTK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 2000 MHz and utilizes LVPECL output logic. The device functions with a supply voltage of 3.3V and includes an enable/disable control feature. It is housed in an 8-SMD, No Lead package configuration.
Feature Summary
- Supports high-frequency operation at 2000 MHz
- Features LVPECL output interface for signal integrity
- Includes enable and disable control functionality
Applications
- High-speed computing systems
- Telecommunications infrastructure
- Automotive electronics
- Industrial devices
Procurement Notes
Verify the specific part number against official manufacturer documentation to ensure accuracy. Confirm that the LVPECL output type and 3.3V supply requirements align with your system design. Check for any specific ordering suffixes or package variations that may affect compatibility. Ensure the component status is active before procurement.
Selection Notes
Select this component when a 2000 MHz clock source with LVPECL outputs is required. Consider the 3.3V operating voltage and the need for enable/disable control. Evaluate the 8-SMD no-lead package size against board space constraints. Verify thermal and electrical performance requirements match the oscillator specifications.
Part Context
Suzhou Hangjing Elec&Tech Co., Ltd specializes in quartz frequency controlling units, including oscillators and crystals. The company was founded in 2014 and focuses on research, development, and production of these components. Their product lines cover various applications in computing, communication, and industrial sectors.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided data. Consult official manufacturer resources for potential alternatives.
