1536420

Overview

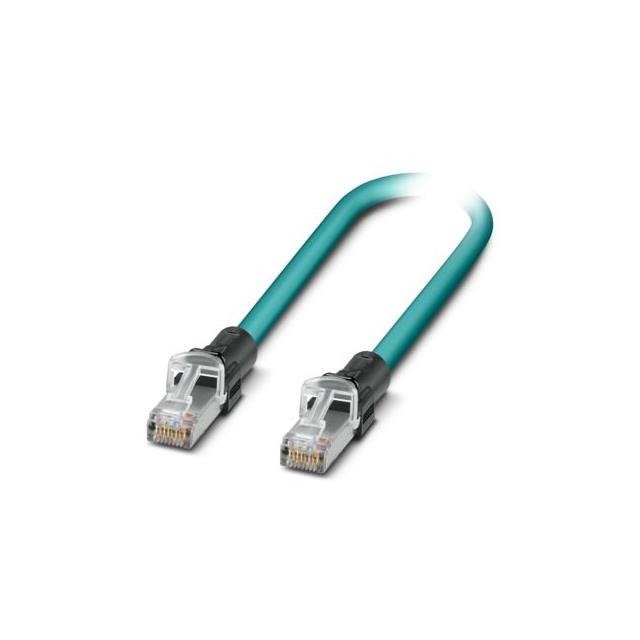

Phoenix Contact part number 1536420 is a pre-assembled NBC-R4ACS/1,5-94F/R4ACS patch cable designed for industrial Ethernet applications. It features an 8-position RJ45 male-to-male connector configuration and supports CAT6A standards with transmission speeds up to 10 Gbps. The cable length is 1.5 meters (4.92 feet). Electrical characteristics include a rated voltage of 72 V (III/2) and an overvoltage category of I. The connectors require an insertion force of 50 N and a withdrawal force of 30 N per signal contact. The product belongs to the RJ45 INDUSTRIAL IE8 CAT6A series.

Feature Summary

• Supports 10 Gbps data transmission rates compliant with CAT6A Ethernet standards
• Features shielded construction for reliable signal integrity in industrial environments
• Utilizes robust RJ45 male connectors on both ends for direct device interconnection

Applications

• Industrial automation network connections
• Factory engineering communication links
• Machine tool data transmission

Procurement Notes

Verify the specific order code 1536420 against the manufacturer's current catalog to ensure compatibility with existing infrastructure. Confirm that the 1.5-meter length and CAT6A shielding specifications meet the project's bandwidth and distance requirements. Check for any recent updates to the RJ45 INDUSTRIAL IE8 series documentation regarding environmental ratings or connector durability standards before finalizing procurement.

Selection Notes

Select this component when high-speed 10 Gbps connectivity is required within a confined industrial setting. The 1.5-meter length is suitable for short-range equipment linking. Ensure the application environment aligns with the specified overvoltage category I and pollution degree 2. Consider the mechanical forces required for connection during installation planning to avoid connector damage.

Part Context

This patch cable belongs to Phoenix Contact's RJ45 INDUSTRIAL IE8 CAT6A product series, which is engineered for demanding industrial networking scenarios. The series emphasizes durability and high-frequency performance, distinguishing it from standard office-grade cabling. Part 1536420 represents a specific length variant within this broader family of pre-assembled Ethernet solutions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
