1543923

Overview

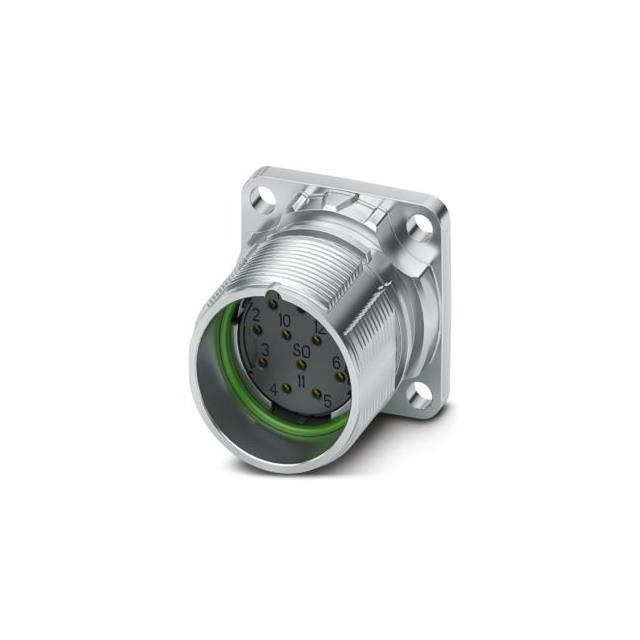

Phoenix Contact part number 1543923, also identified as M23-12S2N12W600S, is a device connector from the M23 PRO series. It features a straight shielded design suitable for standard and ONECLICK fast locking systems with 12 positions. The component operates at a working current of 8A. It utilizes screw thread connections and supports soldering termination. The connector is designed for board front mounting applications.

Feature Summary

• Straight shielded design compatible with standard and ONECLICK fast locking systems
• M23 PRO series construction with screw thread connection
• Supports soldering termination for secure electrical contact

Applications

• Industrial sensor and actuator cabling
• Board front mounting in control cabinets
• Standard industrial automation interfaces

Procurement Notes

Verify the exact designation M23-12S2N12W12W600S against official Phoenix Contact documentation to ensure compatibility with ONECLICK systems. Confirm that the 12-position configuration matches your panel requirements. Check regional availability restrictions as distribution may vary by location. Ensure environmental protection measures are planned for outdoor use if applicable.

Selection Notes

Select this connector when a straight, shielded M23 interface is required for board front mounting. The 12-position layout suits applications needing multiple signal lines within a compact form factor. Verify that the operating temperature range meets your specific environment needs. Ensure the housing material and plating are suitable for the intended mechanical and chemical exposure conditions.

Part Context

This component belongs to the Phoenix Contact M23 PRO series, which provides robust circular connectors for industrial environments. The series emphasizes reliable data transmission and power delivery through standardized mechanical interfaces. The M23 size allows for higher pin counts compared to smaller M12 or M8 connectors while maintaining a compact footprint suitable for dense panel installations.

Replacement Considerations

The equivalent part number M23-12S2N12W600S is documented as an alternative designation. Verify mechanical dimensions and pinout configurations before substitution. Ensure the replacement maintains the same shielding and locking system compatibility.
